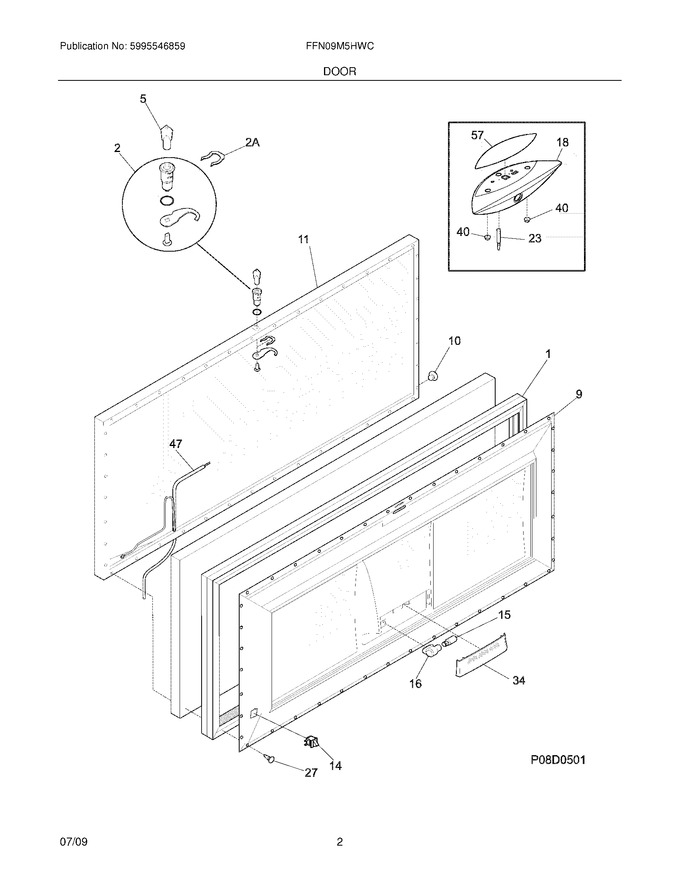

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481001 | Gasket-door, White |
|
$ 202.00 | |||||
| 2 | 297090200 | Lock Assy |
|
$ 27.04 | |||||
| 5 | 297147700 | Key,lock |
|
Immediately | $ 7.57 | ||||
| 9 | 216829800 | Panel-inner Lid,white ,frzr |
|
$ 121.38 | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216117934 | Panel-outer Lid,white |
|
$ 214.88 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp |
|
Immediately | $ 70.16 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 73.06 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 19.52 | |||||
| 18 | 216897600 | Handle,white |
|
$ 60.58 | |||||
| 23 | 216212700 | Light-signal,amber |
|
- | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 34 | 297013900 | Shield,light |
|
$ 35.73 | |||||
| 40 | 216922700 | Fastener,.330 Dia Stud ,handle ,(2) |
|
$ 12.05 | |||||
| 47 | 297036600 | Wiring Harness,lid/w Signal Lt |
|
$ 52.31 | |||||
| 57 | 216899513 | Overlay |
|
$ 37.43 | |||||
| 2A | 297090900 | Clip,spring |
|
$ 10.85 | |||||
| NI | 5304406520 | Clip,panel Mtg Kit ,(40) |
|
$ 125.83 | |||||
| NI | 216858001 | Screw,8-18x.50 Ab ,no.10 |
|
Immediately | $ 10.85 | ||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| NI | 5309948955 | Clip-panel |
|
$ 11.53 |
