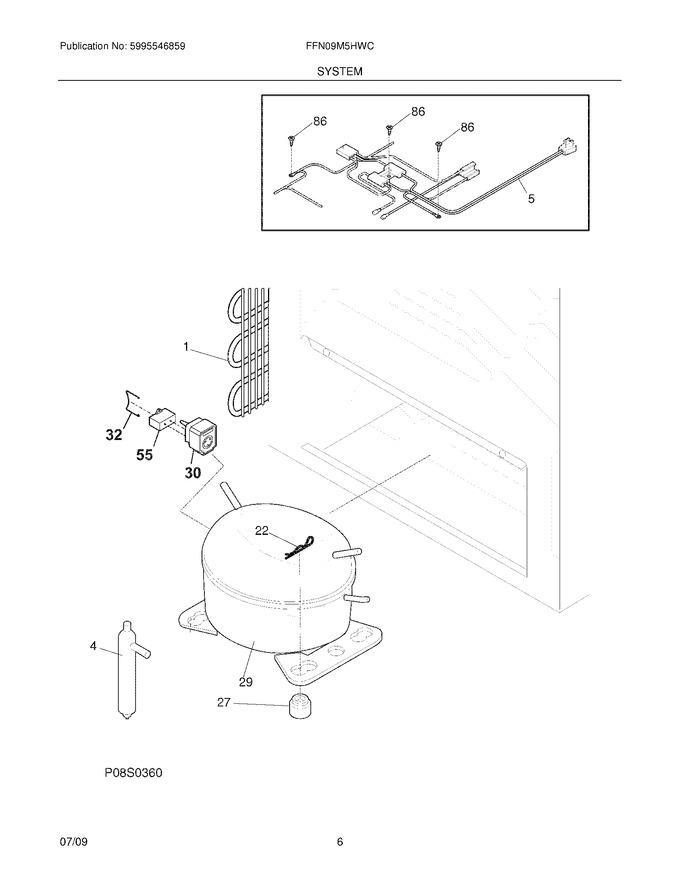

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	216987500		Drier-filter		Appelez-nous	-
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
27	297293300		Grommet,compressor		Appelez-nous	-
30	216954222		Controller				$ 85.05
32	216649200		Clip,controller				$ 6.30
55	297286812		Capacitor,run ,12 Mf   (Replaces: 216985002)			Immediately	$ 11.78
86	216707701		Screw,8-18 X 1/2		Appelez-nous	-
F1	5300120781		Condenser		Appelez-nous	-
F29	297270400		Compressor,w/o Electricals		Appelez-nous	-
F5	297034300		Harness-main				$ 68.52
NI	216707801		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
