SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

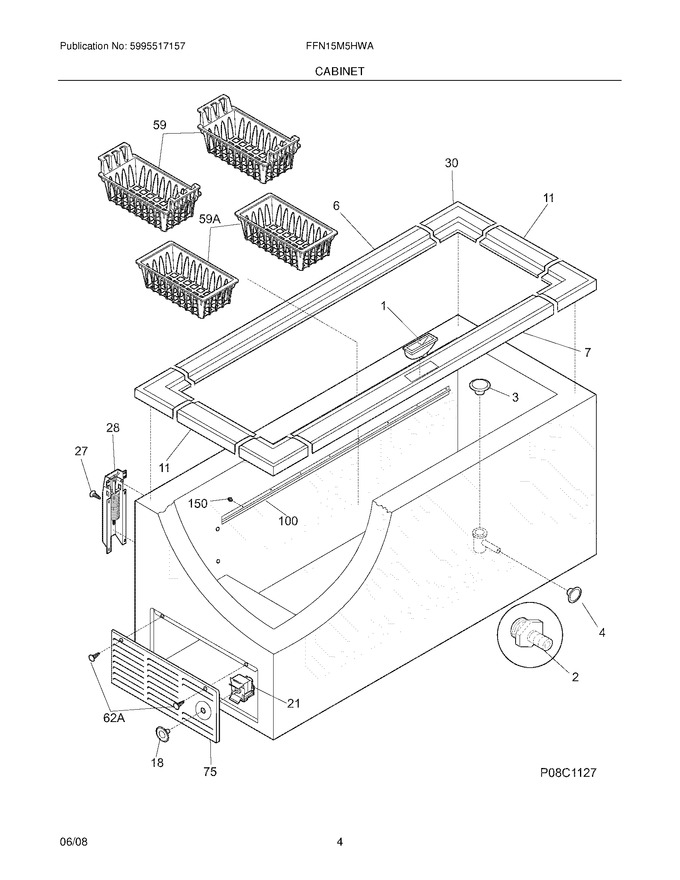

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
2	216269500		Adapter, Drain Hose				$ 14.81
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
6	216955505		Breaker,hinge Side				$ 7.29
7	297129200		Breaker,lock Side ,w/lock Catch				$ 46.03
11	216955500		Breaker,chest End ,(2)				$ 15.75
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
28	297321900		Hinge   (Replaces: 216035200)				$ 90.01
30	216110700		Breaker Corners				$ 28.45
59	216916200		Basket,upper				$ 31.92
75	216034301		Panel-access, White				$ 103.01
100	216995201		Track-basket		Appelez-nous	-
150	216997400		Support,track-basket				$ 10.61
59A	216867400		Basket,lower				$ 61.09
62A	5304460602		Screw,cr Truss Head ,8-18ab X 0.750		Appelez-nous	-
F21	216714601		Control Temperature				$ 143.87
NI	297082103		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
