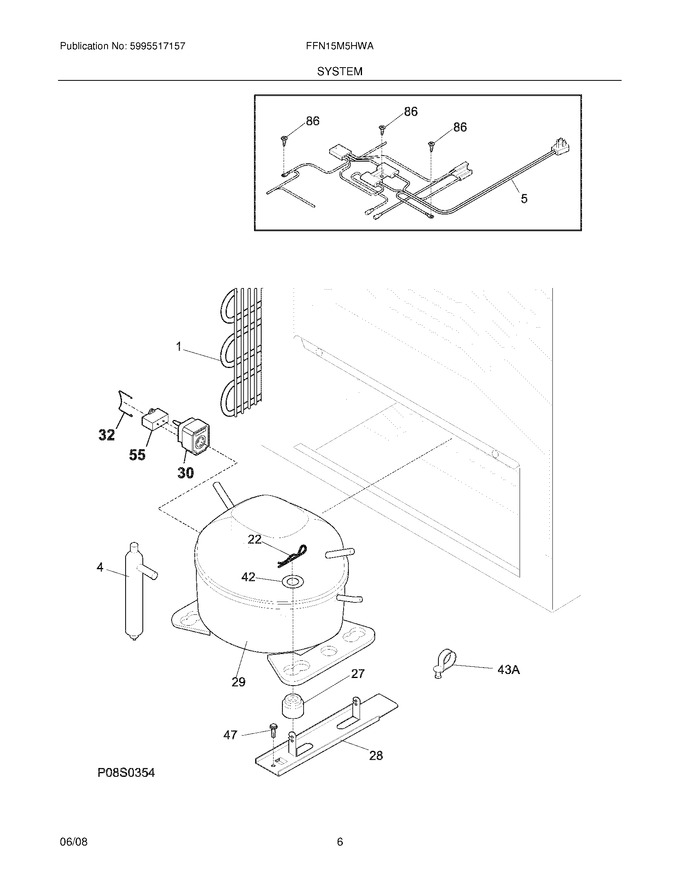

07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 22 | 242037701 | Clip-compressor Mtg (Replaces: 216056401) |
|
$ 2.84 | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 5304464023 | Support,compressor |
|
- | |||||
| 30 | 216954235 | Controller (Replaces: 297237700) |
|
Immediately | $ 87.21 | ||||
| 32 | 297030500 | Clip,controller |
|
Immediately | $ 12.05 | ||||
| 42 | 216232701 | Washer,flat |
|
$ 2.10 | |||||
| 47 | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 13.01 | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 43A | 5303212614 | Clip,harness Mount |
|
$ 2.88 | |||||
| F1 | 5303925238 | Condenser |
|
$ 467.78 | |||||
| F29 | 5304507765 | Compressor,w/o Electricals (Replaces: 297237300) |
|
Immediately | $ 677.23 | ||||
| F5 | 216987300 | Harness-main |
|
- | |||||
| F55 | 218909912 | Capacitor-run,220 Vac ,12 Microfarad |
|
Immediately | $ 74.75 |
