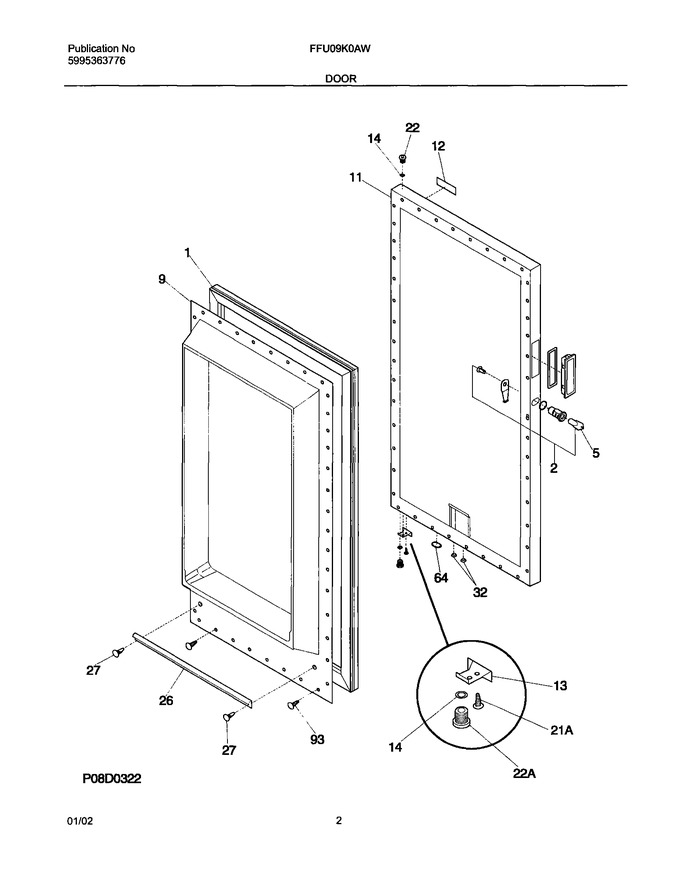

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304507203 | Gasket-door (Replaces: 216522300) |
|
$ 182.71 | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 9 | 216527302 | Panel-inner Door,frzr |
|
- | |||||
| 11 | 216564205 | Panel-outer Door,white |
|
- | |||||
| 12 | 241808601 | Label-nameplate,white (Replaces: 240415201) |
|
$ 12.69 | |||||
| 13 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 14 | 5303313518 | Washer, Sealing |
|
- | |||||
| 22 | 216443600 | Bearing |
|
$ 0.68 | |||||
| 26 | 216524400 | Gasket-secondary |
|
- | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 32 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 64 | 216403700 | Plug-button,door Base |
|
$ 58.12 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 21A | 08005520 | Screw-door Stop |
|
- | |||||
| 22A | 297006800 | Bearing-hinge, Btm (Replaces: 216503200) |
|
$ 12.29 | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 |
