SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

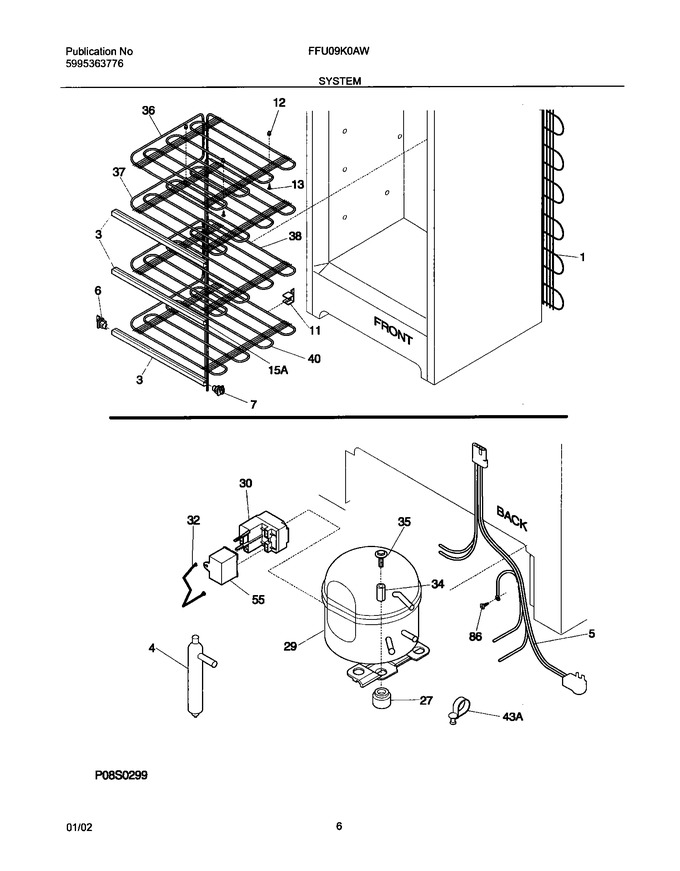

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216612100		Trim-shelf,evaporator		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
6	297001600		Support-shelf,front Lh   (Replaces: 3091418)				$ 18.08
7	297001500		Support, Shelf, Front Rh   (Replaces: 08037928)				$ 18.08
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
27	216498900		Grommet,compressor				$ 13.01
30	216649304		Controller				$ 98.86
32	216694500		Clip,controller		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
55	297286812		Capacitor-run,180 Vac ,15 Microfarad   (Replaces: 216696700)			Immediately	$ 11.78
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
15A	216404900		Heat Exchanger				$ 264.23
43A	216629700		Clip-harness		Appelez-nous	-
F1	5303304537		Condenser		Appelez-nous	-
F29	5304443412		Compressor,w/o Electricals   (Replaces: 216696600)				$ 856.23
F36	216069300		Grid-top Evaporator				$ 160.39
F37	216069400		Shelf-top Evaporator		Appelez-nous	-
F38	216069500		Shelf-middle Evaporator		Appelez-nous	-
F40	216069600		Shelf-bottom Evaporator		Appelez-nous	-
F5	216761500		Harness,electrical		Appelez-nous	-
NI	216502500		Sleeve-tube Insert				$ 10.85

    View Diagram in Separate Window       Print Part List
