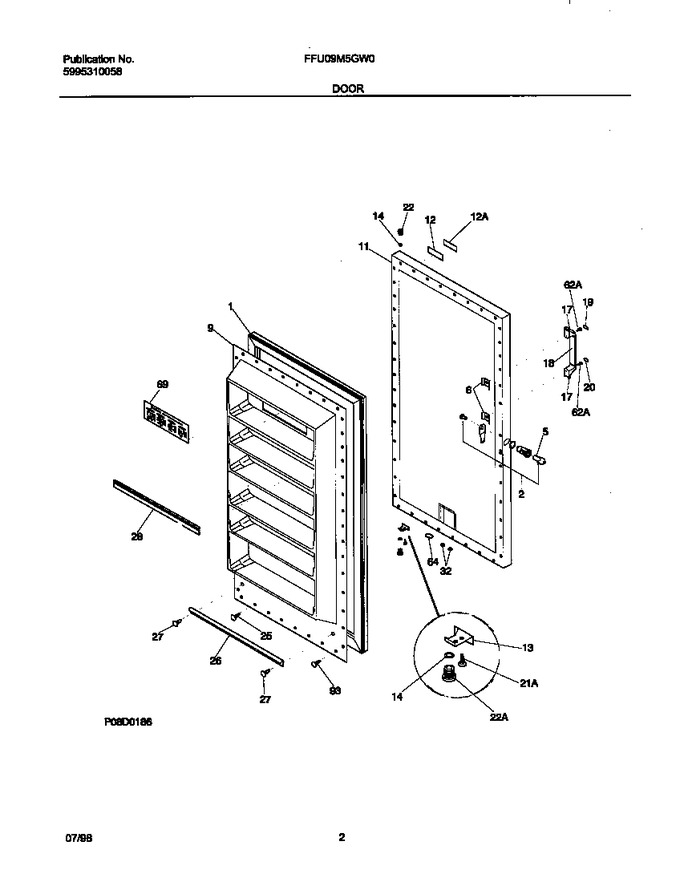

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507203		Gasket-door   (Replaces: 216522300)				$ 182.71
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
6	218990001		Screw-anchor,8-18   (Replaces: 5300158222)				$ 16.30
9	216527201		Panel-inner Door,frzr		Appelez-nous	-
11	216564201		Panel-outer Door,white		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	216315100		Nameplate		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
17	216209800		End Cap, White				$ 47.25
18	216518000		Handle,center		Appelez-nous	-
19	216208900		Insert, Handle Top		Appelez-nous	-
20	216209000		Insert-handle,bottom		Appelez-nous	-
21	08005520		Screw-door Stop		Appelez-nous	-
22	297006800		Bearing-hinge, Btm   (Replaces: 216503200)				$ 12.29
22	216443600		Bearing				$ 0.68
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
26	216524400		Gasket-secondary		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
28	216523502		Rack-shelf,wide ,white		Appelez-nous	-
32	5309950074		Valve, Breather				$ 12.48
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
64	216403700		Plug-button, Base Door				$ 58.12
69	216485600		Label-frozen Food		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
