SELECT A DIAGRAM

01 - Cover


02 - Door

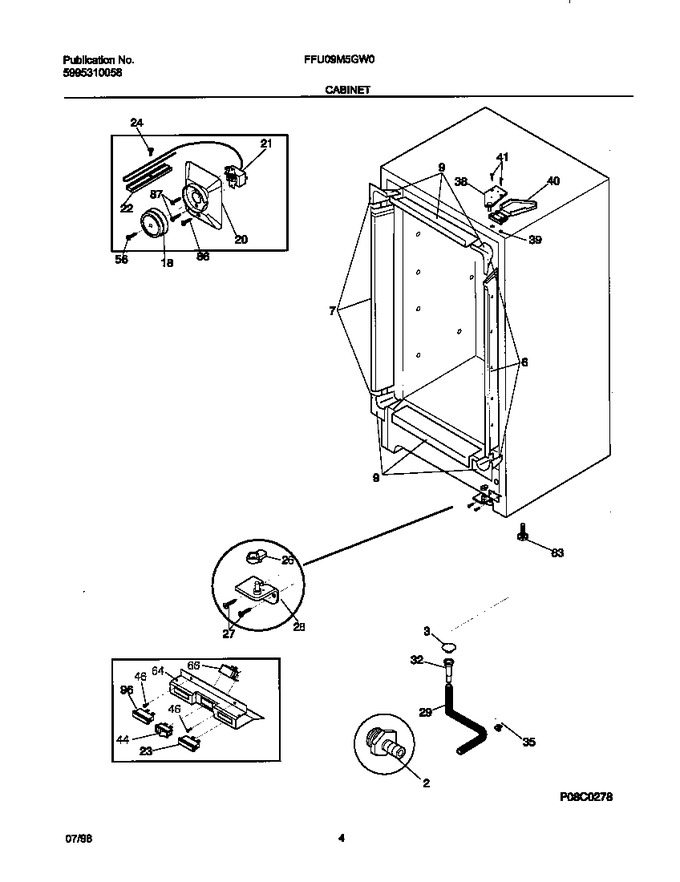

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	216269500		Adapter, Drain				$ 14.81
3	216502600		Plug-drain,exterior			Immediately	$ 17.35
6	216509508		Breaker,hinge Side		Appelez-nous	-
7	216604000		Breaker,lock Side		Appelez-nous	-
9	216603500		Breaker,top		Appelez-nous	-
18	216591802		Knob,temp Control		Appelez-nous	-
20	5303288184		Cover-control Housing		Appelez-nous	-
21	216620200		Control-cold				$ 196.35
22	08037931		Clamp, Cap Tube, Cold Control		Appelez-nous	-
23	5308002706		Light-signal,amber				$ 39.11
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp, Closer Door				$ 8.82
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Drain Hose				$ 22.42
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
44	5303017178		Switch-rocker		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
56	09950853		Screw, Knob		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
64	08016369		Bracket		Appelez-nous	-
66	08016367		Buzzer,alarm		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
96	08016772		Light-signal,red		Appelez-nous	-
*11200	09948773		Insulation, Drain Tube				$ 12.60
*11201	216539100		Wiring Harness,alarm		Appelez-nous	-
*11202	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
