01 - Body/oven
02 - Door/drawer
03 - Gas Control
04 - Top Assembly
New Model Search:

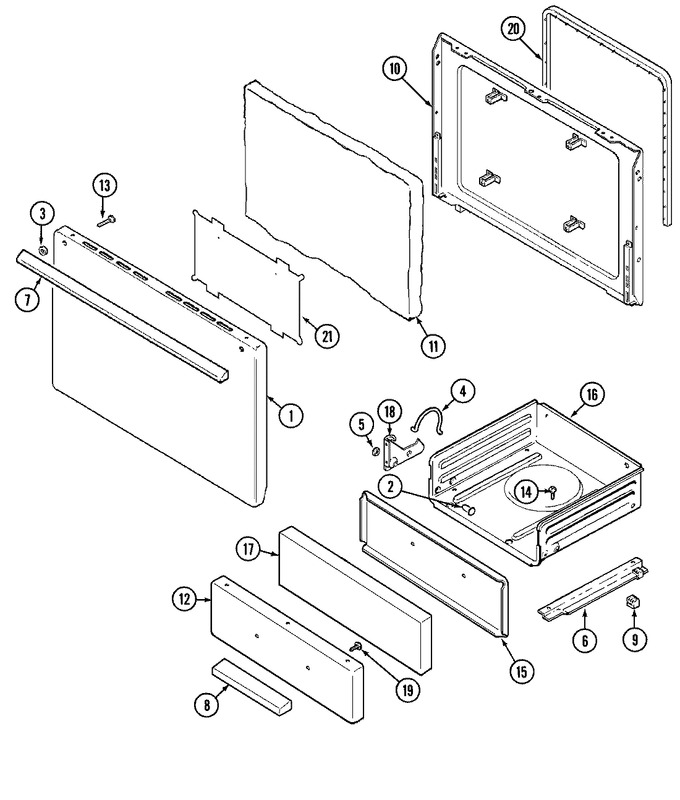

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2401F096-71 | Panel, Door (wht) | 10 |
|
- | ||||
| 1 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 7113P012-60 | Pin, Broiler Hinge | 10 |
|
- | ||||
| 3 | 8010P084-60 | Spacer, Handle (blk) | 10 |
|
- | ||||
| 4 | 7803P064-60 | Spring, Hinge (lt) | 10 |
|
- | ||||
| 4 | 7803P065-60 | Spring, Hinge (rt) | 10 |
|
- | ||||
| 5 | 7103P022-60 | Nut, Grip | 10 |
|
- | ||||
| 6 | 3404F022-51 | Track, Drawer (lt) | 10 |
|
- | ||||
| 6 | 3404F023-51 | Track, Drawer (rt) | 10 |
|
- | ||||
| 6 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 7701P030-60 | Handle, Door (chr) | 10 |
|
- | ||||
| 8 | 7701P012-60 | Handle, Drawer (chr) | 10 |
|
- | ||||
| 9 | 74001663 | Glide | 10 |
|
- | ||||
| 9 | 8016P011-60 | Glide, Drawer | 10 |
|
- | ||||
| 10 | 2402W211-19 | Lining, Door | 10 |
|
- | ||||
| 11 | 4804F050-60 | Insulation, Door 2`` | 10 |
|
- | ||||
| 13 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 10 |
|
Immediately | $ 7.69 | |||
| 14 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 2404F035-19 | Lining, Broiler Drawer | 10 |
|
- | ||||
| 16 | 3407F012-19 | Drawer, Broiler | 10 |
|
- | ||||
| 17 | 4804F025-60 | Insulation | 10 |
|
- | ||||
| 18 | 3418F080-51 | Hinge, Drawer (rt) | 10 |
|
- | ||||
| 18 | 3418F079-51 | Hinge, Drawer (lt) | 10 |
|
- | ||||
| 19 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 10 |
|
$ 5.82 | ||||
| 20 | WP7212P043-60 | Seal, Door (Replaces: 7212P043-60) | 10 |
|
Immediately | $ 56.83 | |||
| 21 | 3601F235-80 | Baffle, Oven Door | 10 |
|
- | ||||
| NI | 7112P034-60 | Clip, Door | 10 |
|
- |
