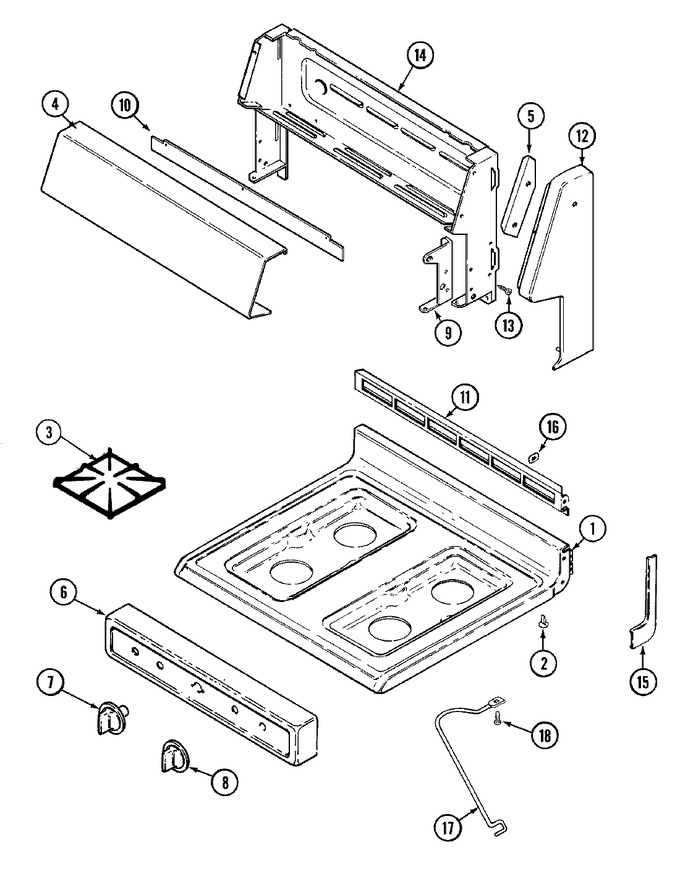

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001W086-81		Top, Main (wht)	10	Appelez-nous	-
2	8016P013-60		Glide	10	Appelez-nous	-
3	2003W027-00		Grate (blk)	10	Appelez-nous	-
4	7703P372-60		Panel, Control	10	Appelez-nous	-
5	3807F450-45		Support, Control Pnl (lt)	10	Appelez-nous	-
5	3807F449-45		Support, Control Pnl (rt)	10	Appelez-nous	-
6	7109P015-60		Washer	10	Appelez-nous	-
6	7101P311-60		Screw----na	10	Appelez-nous	-
6	2616F085-09		Panel, Manifold (blk)	10	Appelez-nous	-
7	7731P105-60		Knob, Thermostat	10	Appelez-nous	-
8	7733P098-60		Knob, Valve	10	Appelez-nous	-
9	3418D097-60		Hinge, Main Top (lt)	10	Appelez-nous	-
9	3418D098-60		Hinge, Main Top (rt)	10	Appelez-nous	-
9	8114P348-60		Cover, Hinge Support	10	Appelez-nous	-
10	8036P003-60		Shield, Sight	10	Appelez-nous	-
11	3608F042-09		Trim, Vent (blk)	10	Appelez-nous	-
11	7101P208-60		Screw (10abx1/4p Tr Zn)	10			$ 11.92
12	7726P062-60		End Cap (lt-blk)	10	Appelez-nous	-
12	7726P061-60		End Cap (rt-blk)	10	Appelez-nous	-
12	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
13	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
14	4005F448-45		Cover, Wire	10	Appelez-nous	-
14	4001F091-51		Housing, Control Panel	10	Appelez-nous	-
15	7746P031-60		End Cap (lt-blk)	10			$ 26.25
15	7746P030-60		End Cap (rt-blk)	10			$ 26.16
16	WP3195558		Nut, Speed   (Replaces: 7103P044-60)	10			$ 7.68
17	74001170		Support, Top	10	Appelez-nous	-
18	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
NI	16000327		Guide, Quick Ref. - Maytag	10	Appelez-nous	-
NI	8111P031-60		Manual, Use & Care	10	Appelez-nous	-
