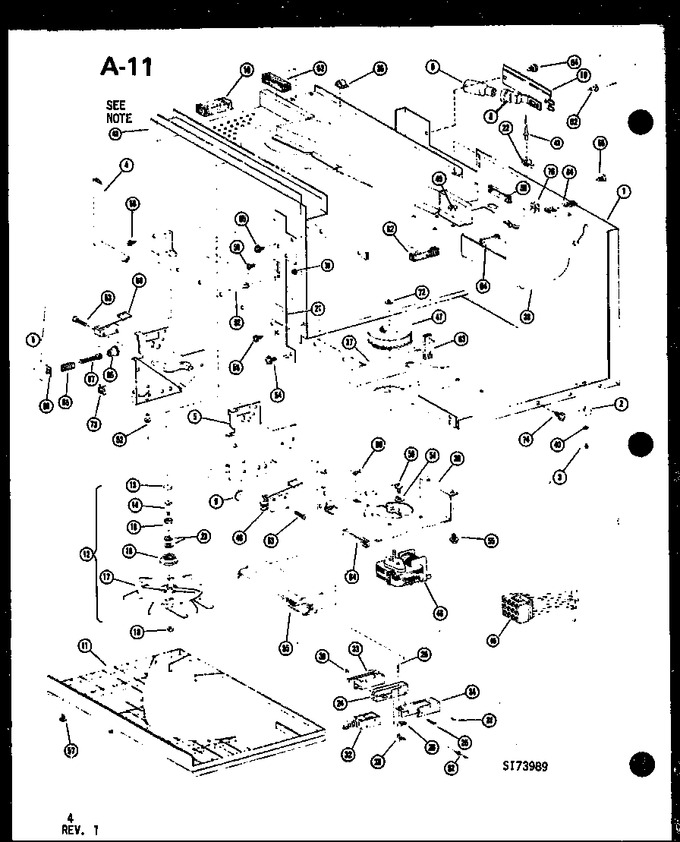

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7506203 | Base Pan |
|
- | |||||
| 2 | B5732505 | Foot |
|
- | |||||
| 3 | A4539619 | Pop Rivet |
|
- | |||||
| 4 | C3637201 | Gasket |
|
- | |||||
| 5 | D7482003 | Ctr Brkt Assy |
|
- | |||||
| 5 | D7482001 | Ctr Brkt Assy - Right |
|
- | |||||
| 6 | R0157145 | Roller Assy Kit |
|
- | |||||
| 8 | B5784001 | Socket |
|
- | |||||
| 9 | A3167501 | Bulb Q |
|
$ 28.47 | |||||
| 10 | B5782901 | Panel |
|
- | |||||
| 11 | D7449001 | Grease Shield |
|
- | |||||
| 12 | C8806701 | Assy, Antenna |
|
- | |||||
| 13 | B5792601 | Bearing Cap |
|
- | |||||
| 14 | B5783101 | Stub-antenna A |
|
- | |||||
| 15 | B5783001 | Bearing-antenna A |
|
- | |||||
| 16 | C8838501 | Bushing A |
|
- | |||||
| 17 | R0183053 | Assy, Antenna |
|
- | |||||
| 18 | M0281203 | Nut A |
|
- | |||||
| 19 | A3263901 | Gasket |
|
- | |||||
| 20 | D7364803 | Plate |
|
- | |||||
| 21 | D7365505 | Flange-oven Cav |
|
- | |||||
| 22 | B5795303 | Fuse, Thermal |
|
- | |||||
| 23 | M0274044 | Washer |
|
- | |||||
| 24 | B8311201 | Spring Latch- |
|
- | |||||
| 25 | M0202521 | Screw |
|
- | |||||
| 26 | B5672502 | Bell Crank |
|
- | |||||
| 28 | B5672503 | Bell Crank |
|
- | |||||
| 29 | A3182602 | Pin-bell Crank |
|
- | |||||
| 30 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 31 | M0201414 | Screw |
|
- | |||||
| 32 | B5682103 | Solenoid, Door Locking |
|
- | |||||
| 33 | A3163412 | Switch Preform A |
|
- | |||||
| 34 | C8845301 | Bracket Latch K |
|
- | |||||
| 35 | D7370701 | Escutcheon-duct |
|
- | |||||
| 36 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 7.00 | |||||
| 37 | C8797201 | Blower Scroll |
|
- | |||||
| 38 | D7349002 | Magnetron Cover |
|
- | |||||
| 40 | D7350507 | Oven Cavity |
|
- | |||||
| 43 | A4539620 | Pop Rivets |
|
- | |||||
| 45 | D7517201 | Oven Wiring Harness |
|
- | |||||
| 46 | C8793201 | Motor |
|
- | |||||
| 47 | C8793501 | Blower Wheel |
|
- | |||||
| 48 | C8736703 | Switch |
|
- | |||||
| 49 | M0282801 | Lock-nut---k |
|
- | |||||
| 50 | M0202842 | Screw |
|
- | |||||
| 51 | M0272605 | Washer |
|
- | |||||
| 52 | A4539601 | Pop Rivet |
|
- | |||||
| 53 | M0227525 | Screw A-k |
|
- | |||||
| 54 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 55 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 56 | A3030302 | Gasket |
|
- | |||||
| 57 | M0213815 | Screw |
|
- | |||||
| 58 | M0216517 | Screw |
|
- | |||||
| 59 | M0217514 | Screw |
|
- | |||||
| 60 | M0113501 | Clip |
|
- | |||||
| 62 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 63 | A3030308 | Gasket |
|
- | |||||
| 64 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 65 | A3277701 | Spring A |
|
- | |||||
| 66 | A3277801 | Guide Screw A-k |
|
- | |||||
| 67 | A3277601 | Screw Adjusting A-k |
|
- | |||||
| 68 | A3162510 | Switch-l Intl A |
|
- | |||||
| 69 | M0286114 | Speed Nut A |
|
- | |||||
| 72 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 73 | B5667302 | Clip |
|
- | |||||
| 74 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.05 | ||||
| 76 | M0288213 | Clip |
|
- |
