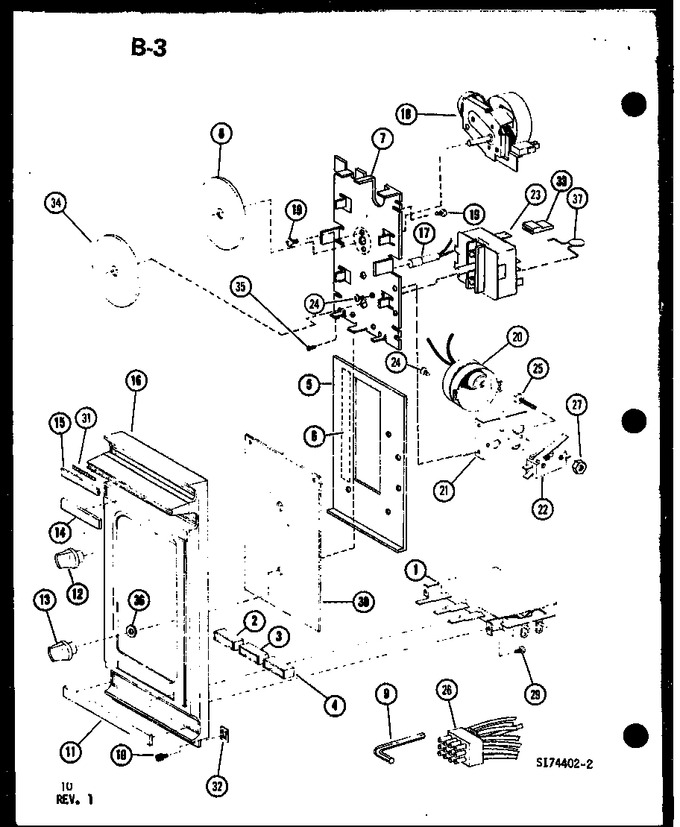

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8787802		Switch Ssl K		Appelez-nous	-
2	C8743104		Button (start) K		Appelez-nous	-
3	C8743105		Button (stop) K		Appelez-nous	-
4	C8743106		Button (light)		Appelez-nous	-
5	B8337401		Plate, Cover		Appelez-nous	-
6	M0275155		Tape Roll		Appelez-nous	-
7	D7465103		Control Mtg Plate		Appelez-nous	-
8	C8730413		Disk-timer A		Appelez-nous	-
9	A4696103		Wrench-hex		Appelez-nous	-
10	M0229916		Screw T.c		Appelez-nous	-
11	B5799701		Nameplate		Appelez-nous	-
12	C8735901		Knob		Appelez-nous	-
13	C8879701		Knob, Switch		Appelez-nous	-
14	B5773002		Insert		Appelez-nous	-
15	B5703901		Insert- K		Appelez-nous	-
16	D7255302		Escutcheon		Appelez-nous	-
17	B5786605		Light Pilot		Appelez-nous	-
18	C8791704		Timer 30 Min K-a		Appelez-nous	-
19	M0234016		Screw		Appelez-nous	-
20	B5699801		Timer		Appelez-nous	-
21	B5699601		Bracket		Appelez-nous	-
22	A3220704		Switch-cut-off		Appelez-nous	-
23	B8334101		Switch		Appelez-nous	-
24	M0213815		Screw		Appelez-nous	-
25	M0202521		Screw		Appelez-nous	-
26	D7527401		Wiring Harness, Cont		Appelez-nous	-
27	M0282005		Nut K				$ 7.07
29	M0234003		Screw		Appelez-nous	-
30	C8844503		Lens. Escut.		Appelez-nous	-
31	M0910002		Adhesive		Appelez-nous	-
32	M0288701		Speed Nut ``u`` Type- Nameplate		Appelez-nous	-
34	C8730419		Disk Timer		Appelez-nous	-
35	M0234114		Screw		Appelez-nous	-
36	M0500702		O Ring K		Appelez-nous	-
37	A1027301		Ptc Resistor Assy		Appelez-nous	-
NI	A4539601		Pop Rivet		Appelez-nous	-
