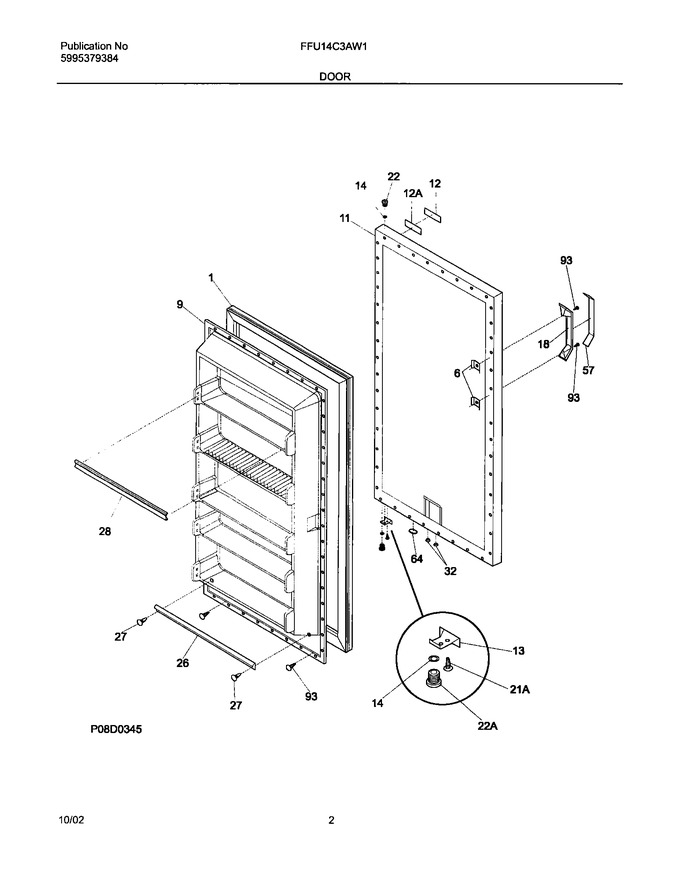

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507201		Gasket,door Seal ,white   (Replaces: 216522306)			Immediately	$ 185.36
6	5303269745		Nut-anchor,door Hdl Screw				$ 1.05
9	216527616		Panel-inner Door,frzr				$ 297.47
11	216557809		Panel-outer Door,white		Appelez-nous	-
12	216817100		Nameplate,insert		Appelez-nous	-
13	08016354		Door Stop				$ 36.07
14	5303313518		Washer, Sealing		Appelez-nous	-
18	216446900		Handle,white				$ 52.34
22	216443600		Bearing,hinge				$ 0.68
26	216524300		Gasket,secondary				$ 27.56
27	5303212828		Clip,panel Mtg				$ 16.63
28	216807701		Rack-door		Appelez-nous	-
32	5309950074		Valve,breather ,door Base				$ 12.48
57	3017682		Insert Handle			Immediately	$ 43.24
64	216403700		Plug-button,hole Filler ,door Base				$ 58.12
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
12A	216817001		Insert-nameplate		Appelez-nous	-
21A	08005520		Screw-door Stop		Appelez-nous	-
22A	297006800		Bearing,hinge ,bottom   (Replaces: 216503200)				$ 12.29
