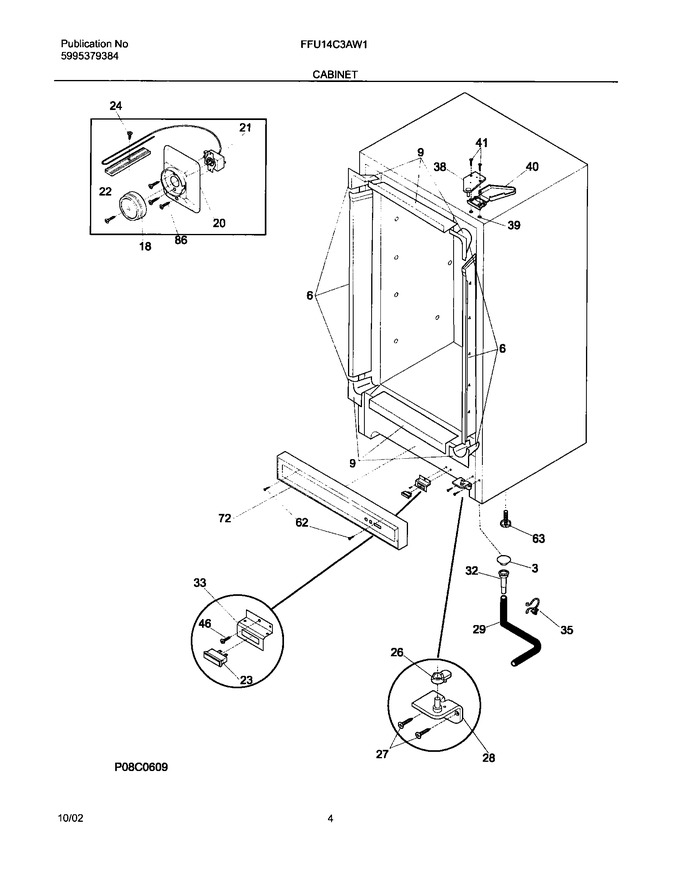

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
6	216603400		Breaker Kit W/corners,22.13`` Long ,top Or Bottom		Appelez-nous	-
9	216604300		Breaker Kit W/corners,45.13`` Long ,no Lock Slot				$ 163.64
18	216707200		Knob,temp Control				$ 44.10
20	216707300		Cover-control Housing		Appelez-nous	-
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
23	06594648		Signal Light, Amber		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
26	216503300		Ramp,door Closer				$ 8.82
27	154518001		Screw,hinge Mtg ,10 (a) X 0.875 ,btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304510363		Hose-drain   (Replaces: 216313502)				$ 13.74
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
33	216831100		Bracket,signal Light		Appelez-nous	-
35	216273000		Clip, Drain Hose				$ 22.42
38	216808900		Hinge,plate ,top				$ 92.87
39	5303294372		Nut-insert,1/4-20 Unc ,hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg   (Replaces: 216850900)				$ 13.46
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	216591215		Grille/kickplate		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
F21	297216004		Control-temperature   (Replaces: 216788100)			Immediately	$ 53.52
NI	09948773		Insulation, Drain Tube				$ 12.60
