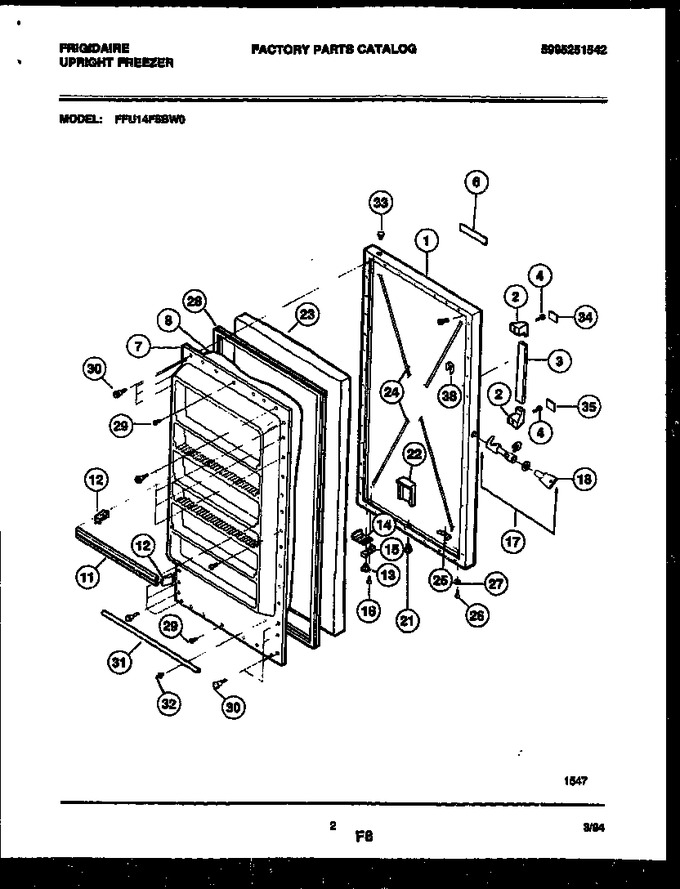

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011417		Panel-door-white		Appelez-nous	-
2	216209800		End Cap (2)				$ 47.25
3	216087700		Handle		Appelez-nous	-
4	5300050149		Screw-handle (2)		Appelez-nous	-
6	215008601		Nameplate		Appelez-nous	-
7	216048717		Panel-inner-almond		Appelez-nous	-
8	09950831		Insulation		Appelez-nous	-
11	216274000		Shelf Front Narrow (5)		Appelez-nous	-
12	5303925377		End Cap-rh-narrow (5)   (Replaces: 216257600)			Immediately	$ 46.07
13	5303210403		Bearing, Bottom		Appelez-nous	-
14	5300091170		Reinforcement, Door Stop		Appelez-nous	-
15	08016354		Door Stop				$ 36.07
16	08005520		Screw-door Stop		Appelez-nous	-
17	5303925107		Lock-complete		Appelez-nous	-
18	297147700		Key   (Replaces: 5308037402)			Immediately	$ 7.57
21	5309950074		Valve Breather (2)				$ 12.48
22	5303212700		Air Duct Breather		Appelez-nous	-
23	5303007739		Insulation, Door		Appelez-nous	-
24	08037953		Wire Adjusting (2)		Appelez-nous	-
25	05879859		Bracket		Appelez-nous	-
26	5300057906		Screw, Bracket		Appelez-nous	-
27	09950839		Washer, Bracket		Appelez-nous	-
28	3206246		Gasket Door (white)				$ 238.51
29	216858001		Screw, Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
30	216022800		Screw-panel (16)		Appelez-nous	-
31	5303300817		Gasket		Appelez-nous	-
32	5303212828		Clip, Gasket (5)				$ 16.63
33	5303297490		Bearing, Top		Appelez-nous	-
34	216208900		Insert, Top		Appelez-nous	-
35	216209001		Insert, Bottom		Appelez-nous	-
38	3202683		Clip, Screw		Appelez-nous	-
12A	5303925377		End Cap-lh-narrow (5)   (Replaces: 216257700)			Immediately	$ 46.07
