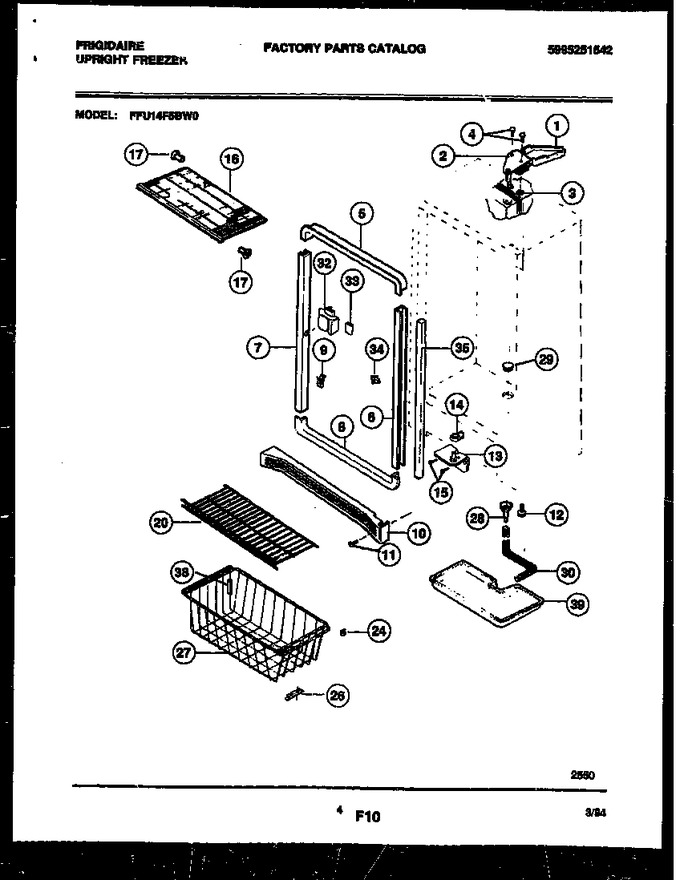

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303212912		Cover, Hinge-white		Appelez-nous	-
2	5303212935		Hinge, Top		Appelez-nous	-
3	5303294372		Insert, Nut				$ 43.68
4	5303210386		Screw		Appelez-nous	-
5	216073300		Breaker Top		Appelez-nous	-
6	216108601		Breaker-hinge Side		Appelez-nous	-
7	216108701		Breaker, Lock Side		Appelez-nous	-
8	216073200		Breaker Bottom		Appelez-nous	-
9	06594680		Clip, Breaker		Appelez-nous	-
10	216294306		Panel-toe		Appelez-nous	-
11	5303302714		Screw (2)		Appelez-nous	-
12	205363701		Leg Leveler-adj (4)		Appelez-nous	-
13	216247400		Hinge-bottom		Appelez-nous	-
14	5303210424		Ramp, Door Closer		Appelez-nous	-
15	154518001		Screw-hinge (2)   (Replaces: 5303205738)				$ 10.54
16	216266500		Shelf-upper (2)		Appelez-nous	-
17	216261100		Support-front & Rear (16)		Appelez-nous	-
20	216266600		Shelf-bottom (1)		Appelez-nous	-
24	5305878546		Bumper, Basket				$ 7.23
26	08009560		Glide, Basket				$ 35.25
27	216274400		Basket (1)		Appelez-nous	-
28	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
29	216503100		Screen, Drain   (Replaces: 5308037403)				$ 62.17
30	216269601		Hose-drain		Appelez-nous	-
32	216013600		Catch, Lock		Appelez-nous	-
33	216013700		Clip, Lock Catch		Appelez-nous	-
34	5309918806		Switch, Light			Immediately	$ 21.97
35	09950831		Insulation		Appelez-nous	-
38	5303288196		Spacer, Basket (4)		Appelez-nous	-
39	5308016387		Pan-defrost		Appelez-nous	-
38A	09948791		Stop, Basket		Appelez-nous	-
