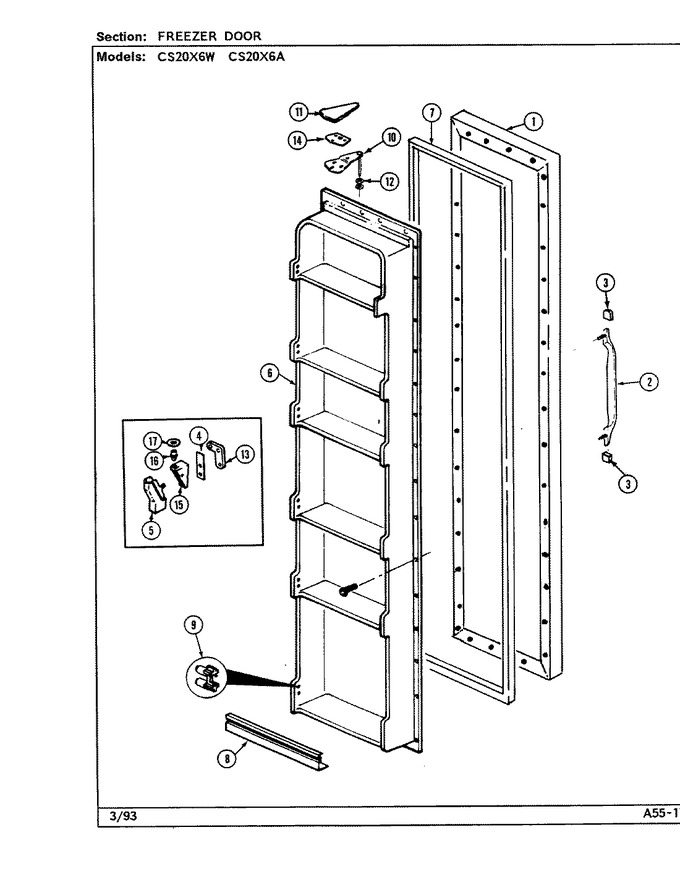

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Optional Ice Maker Kit


05 - Shelves & Accessories


06 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72346-3-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	12000051		Kit, Handle Assy. (wht)		Appelez-nous	-
3	69590-1		End Cap, Handle		Appelez-nous	-
4	69031-1		Shim		Appelez-nous	-
5	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
6	69246-1		Liner, Frz. Door		Appelez-nous	-
7	70024-1		Gasket		Appelez-nous	-
8	WP61003045		Trim, Door Shelf   (Replaces: 65151-3)				$ 129.55
9	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
10	53709-22		Hinge, Upper		Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
11	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
12	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
13	65275-59		Screw		Appelez-nous	-
13	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
14	65031-1		Shim, Upper Hinge		Appelez-nous	-
15	65275-51		Screw, Lower Hinge		Appelez-nous	-
15	69516-2		Hinge, Lower (blk)		Appelez-nous	-
16	69845-1		Pin, Lower Hinge				$ 44.55
17	495034-900		Plug Button, Door		Appelez-nous	-
17	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
