SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Optional Ice Maker Kit


05 - Shelves & Accessories


06 - Unit Compartment & System

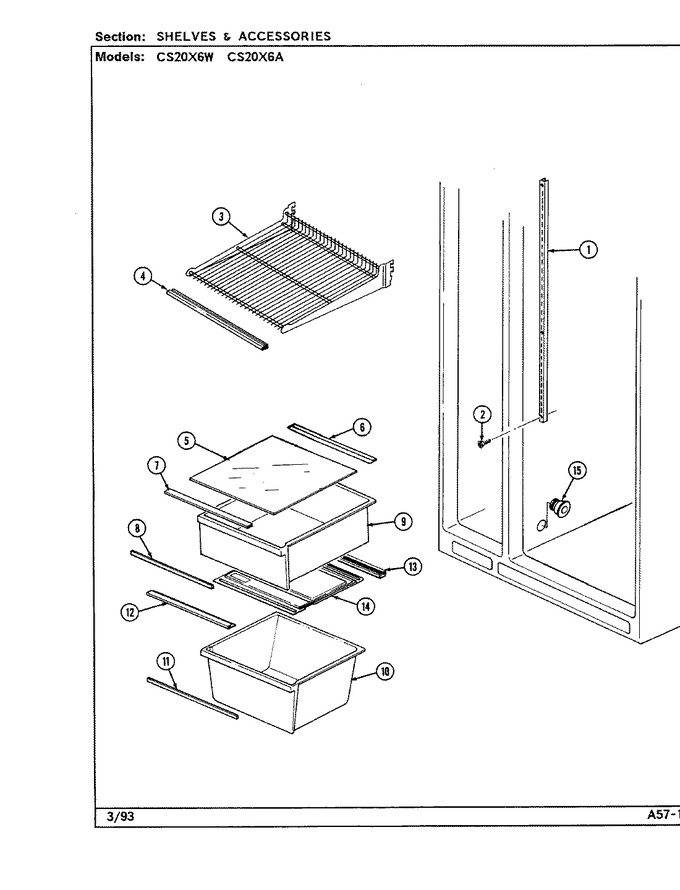

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	65606-7		Shelf, Wire		Appelez-nous	-
4	66649-1		Trim		Appelez-nous	-
5	65687-1		Shelf, Crisper (glass)		Appelez-nous	-
6	66092-1		Seal		Appelez-nous	-
7	66650-1		Trim		Appelez-nous	-
8	68124-77		Insert		Appelez-nous	-
9	66636-48		Pan, Crisper		Appelez-nous	-
10	66636-49		Pan, Meat		Appelez-nous	-
11	68124-77		Insert		Appelez-nous	-
12	65648-1		Seal, Meat Pan (front)		Appelez-nous	-
13	65649-1		Seal, Meat Pan (rear)		Appelez-nous	-
14	65608-3		Cover, Meat Pan		Appelez-nous	-
14	67684-1		Tunnel, Air Return		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
