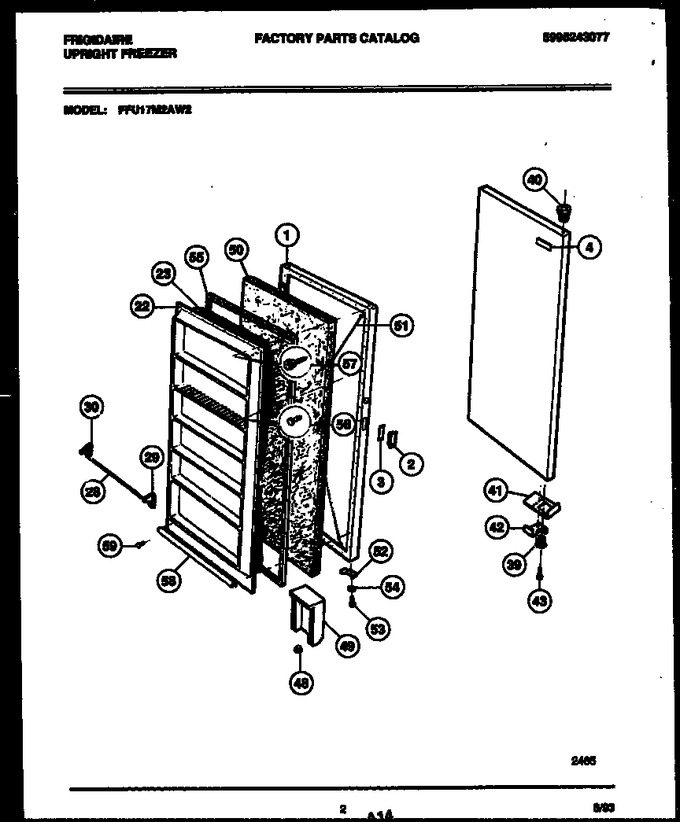

02 - Door Parts


03 - Cabinet Parts


04 - System And Electrical Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011520		Panel-door (white)		Appelez-nous	-
2	216140100		Handle-door		Appelez-nous	-
3	08009392		Gasket Handle		Appelez-nous	-
4	215008601		Frame		Appelez-nous	-
22	216063509		Panel-inner (white)		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	216140000		Front-shelf Wire (5)				$ 53.76
29	08005524		End Cap Rh		Appelez-nous	-
30	08005525		End Cap Lh		Appelez-nous	-
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5306593364		Bearing-top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Stop-door				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
48	5309950074		Valve Breather (2)				$ 12.48
49	5303212700		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037981		Wire Adjusting (2)		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5300057906		Screw, Bracket (2)		Appelez-nous	-
54	09950839		Washer, Bracket (2)		Appelez-nous	-
55	3206256		Gasket, Door, White				$ 248.43
56	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw, Panel (24)		Appelez-nous	-
58	5308016356		Gasket-white		Appelez-nous	-
59	5303212828		Clip, Gasket (5)				$ 16.63
