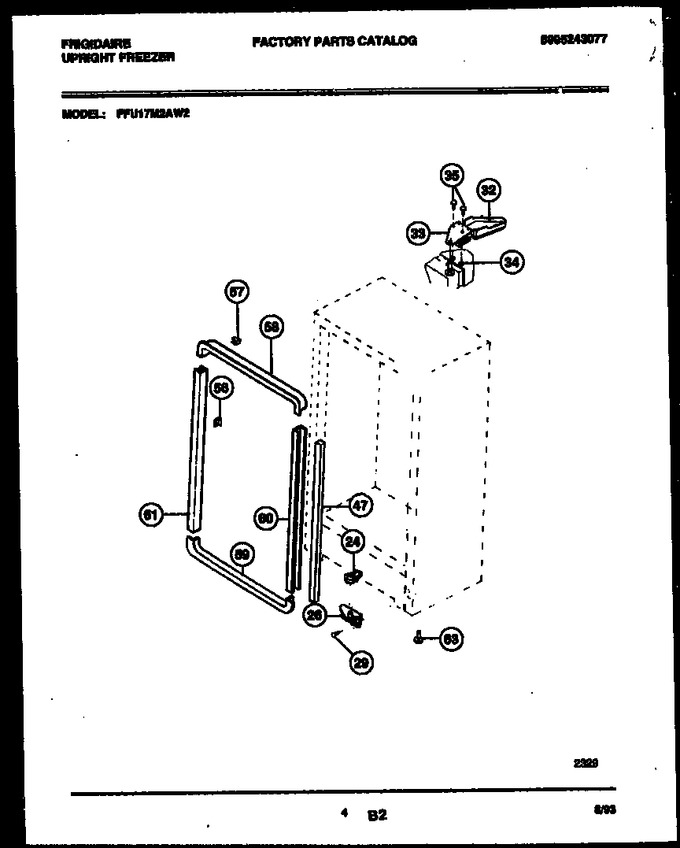

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 5303210424 | Ramp, Door Closer |
|
- | |||||
| 26 | 5303210383 | Hinge, Bottom |
|
- | |||||
| 29 | 154518001 | Screw-bottom Hinge (Replaces: 5303205738) |
|
$ 10.54 | |||||
| 32 | 5303212912 | Cover, Hinge-white |
|
- | |||||
| 33 | 5303212935 | Hinge, Top |
|
- | |||||
| 34 | 5303294372 | Nut Insert |
|
$ 43.68 | |||||
| 35 | 5303212937 | Screw-top Hinge |
|
- | |||||
| 47 | 09950831 | Insulation |
|
- | |||||
| 56 | 06594680 | Clip, Breaker |
|
- | |||||
| 57 | 08037401 | Retainer |
|
$ 2.85 | |||||
| 58 | 216085900 | Breaker, Top |
|
- | |||||
| 59 | 216085800 | Breaker, Bottom |
|
- | |||||
| 60 | 216109000 | Breaker-hinge |
|
- | |||||
| 61 | 216109100 | Breaker-lock Side |
|
- | |||||
| 63 | 216218100 | Leveling Leg (4) |
|
$ 25.25 |
