Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316028701 Shield-backguard, Rear Wall Appelez-nous -
2 5303272845 Shield-backguard, Inner Appelez-nous -
15 316023102 Channel-support, Backguard Rh Appelez-nous -
16 316042601 Plate,instrument Mtg Appelez-nous -
18 316021802 Cap-end, White, Rh Appelez-nous -
19 316028301 Panel-control, Glass Appelez-nous -
20 316037001 Clock/timer, Eoc Appelez-nous -
21 316039200 Trim-canopy/shield, White Appelez-nous -
24 5303285911 Switch-oven Light, Rocker, White Special Order $ 10.01

28 316015103 Push Button, Gray, Clock/timer/eoc, (11) Special Order $ 11.60

36 316029100 Knob-top Valve, (4) Appelez-nous -
40 316009208 Panel-manifold Appelez-nous -
42 5303272839 Trim/vent Appelez-nous -
44 5303272831 Bracket-backguard, (2) Appelez-nous -
56 316014601 Deflector-flue Appelez-nous -
15A 316023103 Channel-support, Backguard Lh Appelez-nous -
18A 316021803 Cap-end, White, Lh Appelez-nous -
19A 5303272836 Clip-backguard (non-illustrated) Appelez-nous -
28A 316036900 Shaft-push Button, Clock/timer/eoc, (11) Special Order $ 11.24


    View Diagram in Separate Window     Print Icon   Print Part List

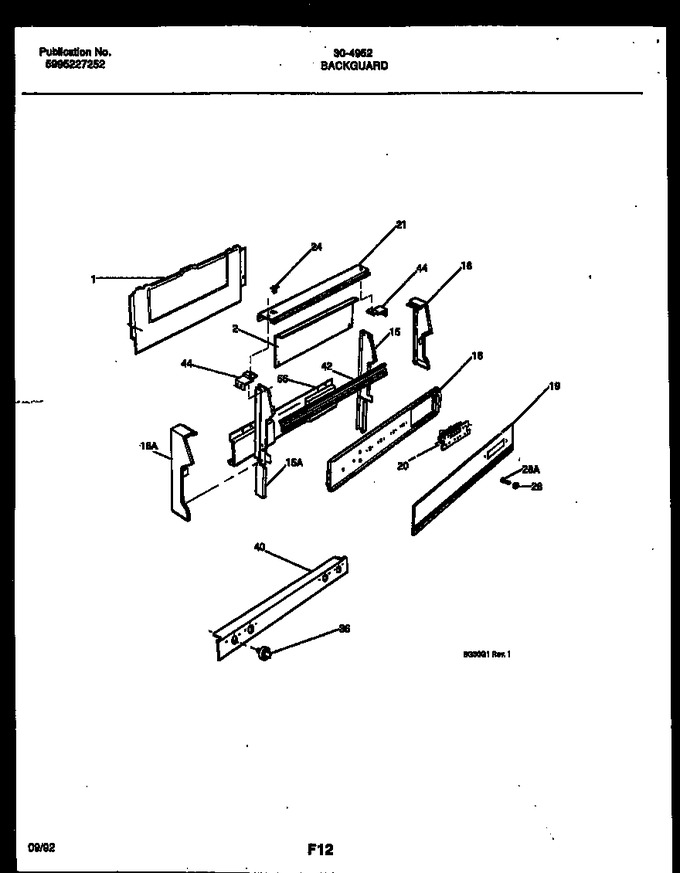

Diagram for 30-4952-00-02
