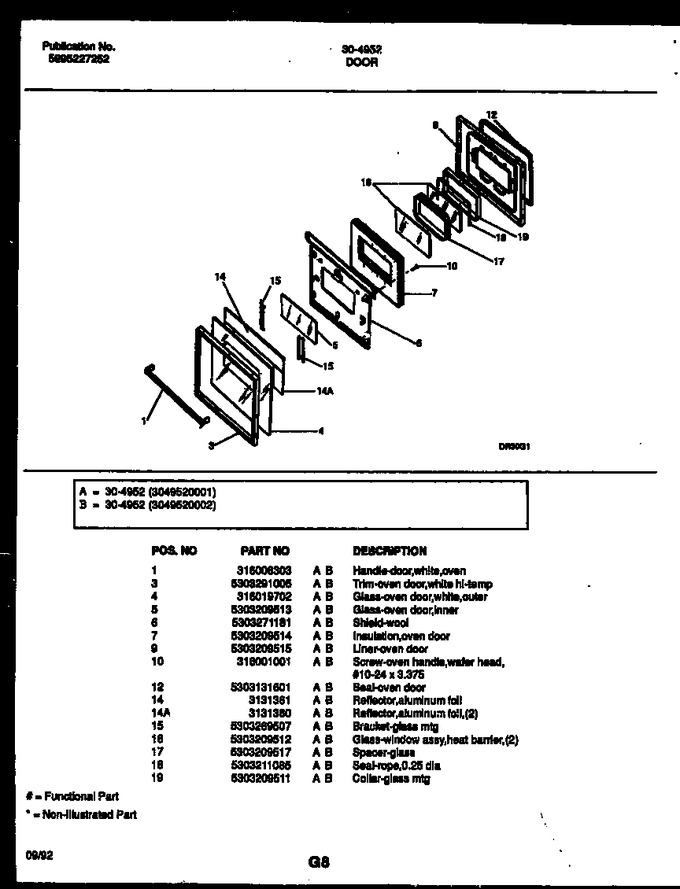

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316008303 | Handle-door, White, Oven |
|
- | |||||
| 3 | 5303291005 | Trim, Oven Door, White Hi,temp |
|
- | |||||
| 4 | 316019702 | Glass-oven Door, White, Outer |
|
- | |||||
| 5 | 5303209513 | Glass-oven Door, Inner |
|
- | |||||
| 6 | 5303271181 | Shield-wool |
|
- | |||||
| 7 | 5303209514 | Insulation-oven Door |
|
- | |||||
| 9 | 5303209515 | Liner-oven Door |
|
- | |||||
| 10 | 316001001 | Screw-oven Handle, Wafer Head, 10-24 X 3.375 |
|
- | |||||
| 12 | 5303131601 | Seal-oven Door |
|
$ 374.63 | |||||
| 14 | 3131361 | Reflector, Aluminum Foil |
|
- | |||||
| 15 | 5303269507 | Bracket-glass Mtg |
|
- | |||||
| 16 | 5303209512 | Glass-window Assy, Heat Barrier, (2) |
|
$ 150.41 | |||||
| 17 | 5303209517 | Spacer-glass |
|
- | |||||
| 18 | 5303211085 | Seal-rope, 0.25 Dia |
|
$ 44.00 | |||||
| 19 | 5303209511 | Collar-glass Mtg |
|
- | |||||
| 14A | 3131360 | Reflector, Aluminum Foil |
|
- |
