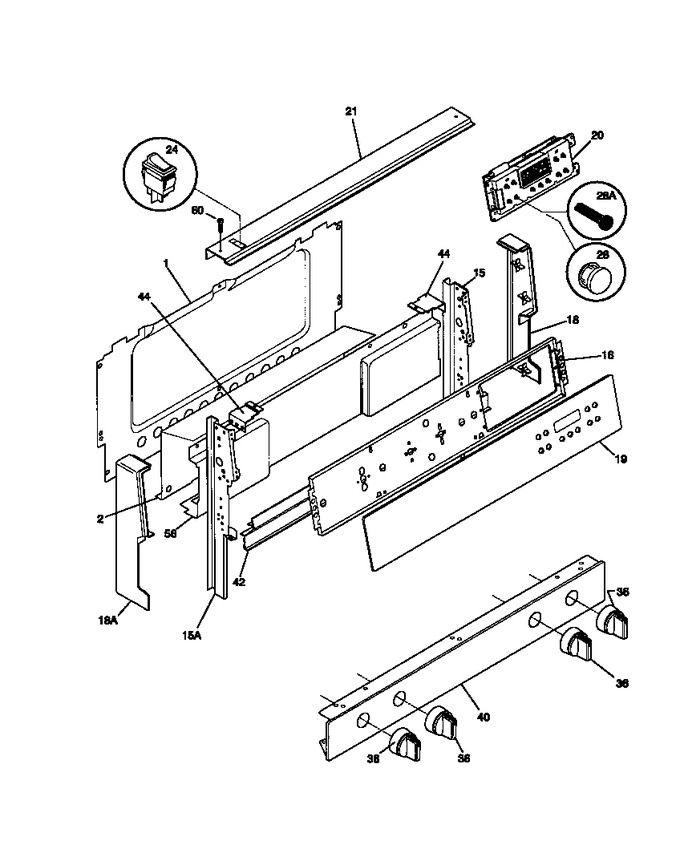

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316038801		Shield-backguard, Inner		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
16	316042601		Plate,instrument Mtg		Appelez-nous	-
18	316021804		End Cap, White, Rh		Appelez-nous	-
18	316021805		End Cap, White, Lh		Appelez-nous	-
19	5303272836		Clip-backguard (not Illustrated)		Appelez-nous	-
19	316028301		Panel-control, Glass		Appelez-nous	-
20	316064501		Clock/timer, Eoc		Appelez-nous	-
21	316039202		Trim-canopy/shield, White		Appelez-nous	-
24	316060400		Switch-rocker		Appelez-nous	-
28	316015103		Push Button, Clock/timer/eoc, Gray, (11)				$ 11.60
28	316036900		Shaft-push Button, Clock/timer/eoc, (11)				$ 11.24
36	316023016		Knob-control, (4)		Appelez-nous	-
40	316009276		Panel-manifold		Appelez-nous	-
42	5303272839		Trim/vent		Appelez-nous	-
44	5303272831		Bracket-backguard, (2)		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*68360	5303290188		Screw, 6 Ov Sdr, 8-18 X 1/2		Appelez-nous	-
*68361	316001441		Harness, Wiring, Backguard		Appelez-nous	-
*68362	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*68363	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
