SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

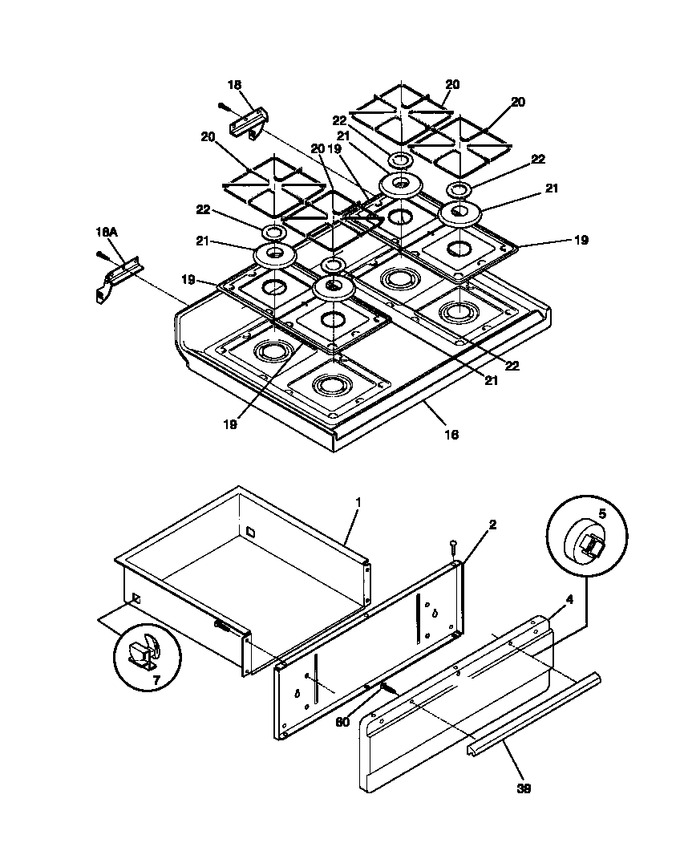

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
16	5303301546		Main Top, White		Appelez-nous	-
16	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316011400		Pan-burner, (4)		Appelez-nous	-
20	316050400		Grate, (4)		Appelez-nous	-
21	316035103		Trim Ring, Burner, Dark Grey		Appelez-nous	-
22	316010903		Cap-burner, Grey, (4)				$ 118.49
39	316019506		Handle-drawer, White		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*68366	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*68367	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*68368	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*68369	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
