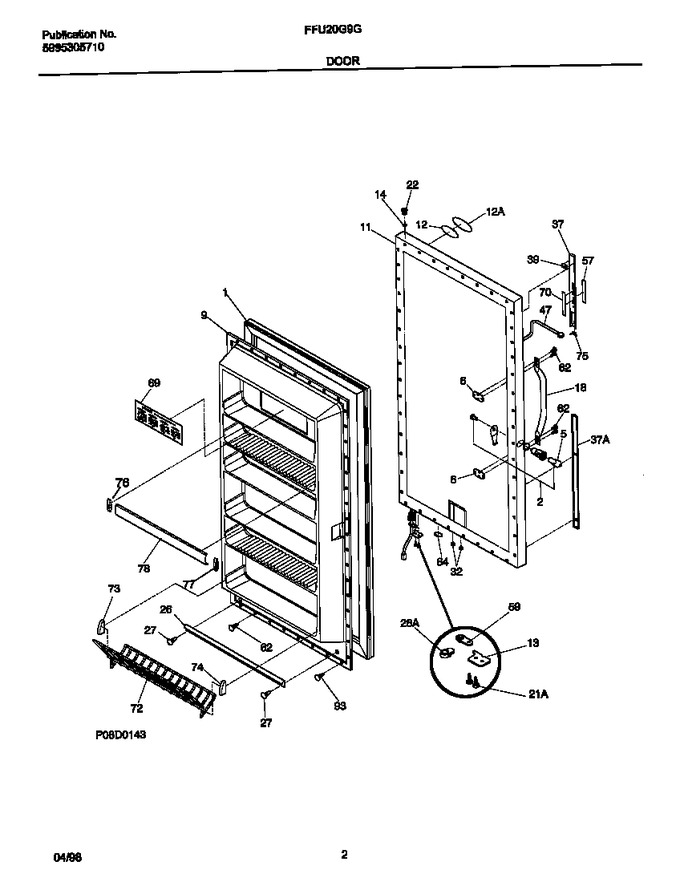

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507199		Gasket-door,white   (Replaces: 216522312)			Immediately	$ 159.60
2	5303925107		Lock Assy		Appelez-nous	-
5	297147700		Key, Lock   (Replaces: 216388700)			Immediately	$ 7.57
9	216528108		Panel-inner Door				$ 272.84
11	53303925398		Panel-outer Door,white		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	215008604		Label-nameplate,white		Appelez-nous	-
13	5303271076		Door Stop				$ 16.30
14	5303313518		Washer, Sealing		Appelez-nous	-
18	297311201		Handle-door, White   (Replaces: 218762701)			Immediately	$ 80.60
21	5303271077		Screw,flat Head ,1/4-20 ,door Stop/hng				$ 8.82
22	216443600		Bearing				$ 0.68
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 49.62
26	216470700		Bearing-hinge,closer Ramp		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
32	5309950074		Valve, Breather				$ 12.48
37	216087600		Trim-handle,bottom		Appelez-nous	-
37	216531800		Trim-door Handle,top		Appelez-nous	-
47	216491600		Harness-wire,elec ,door		Appelez-nous	-
57	216484000		Overlay		Appelez-nous	-
59	5303271072		Bearing-door,closer Ramp		Appelez-nous	-
62	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
64	216403700		Plug-button, Base Door				$ 58.12
69	216485600		Label-frozen Food		Appelez-nous	-
70	216269700		Electronics,low Voltage		Appelez-nous	-
72	216514100		Shelf,tilt Out ,wire				$ 123.80
73	216513900		End Cap,tiltout ,lh				$ 48.86
74	216514000		End Cap,tiltout ,rh				$ 48.05
76	216521800		Support Psuedo Bin,lh				$ 24.05
77	216522100		Support Psuedo Bin,rh				$ 24.20
78	216579502		Rack-shelf,wide ,32		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
