SELECT A DIAGRAM

01 - Cover


02 - Door

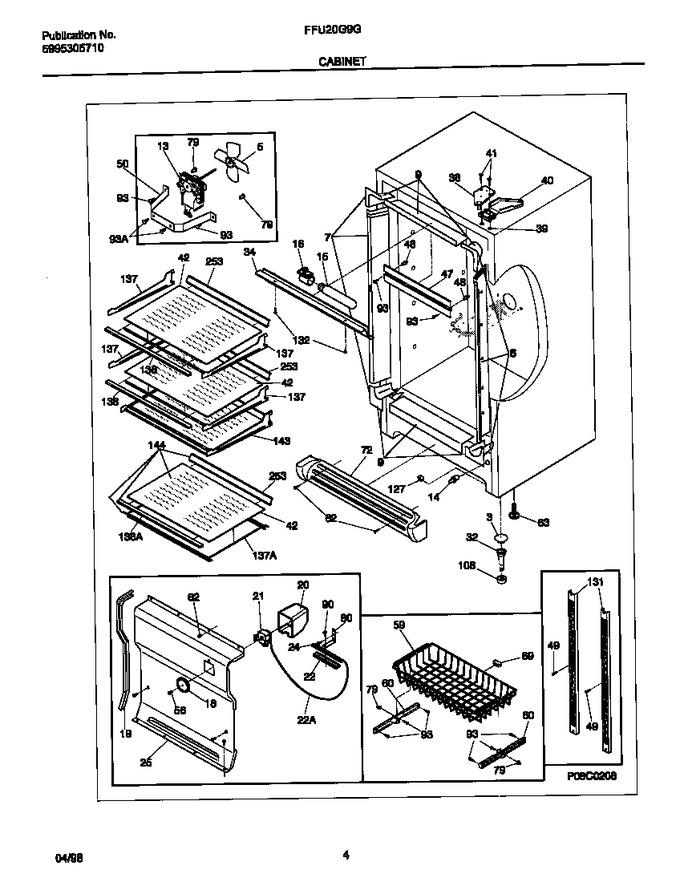

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
12	218364004		Frame-nameplate, White		Appelez-nous	-
13	5304442620		Motor-evap Fan   (Replaces: 216482400)				$ 282.51
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
18	216008602		Knob-temp Control		Appelez-nous	-
19	216204901		Gasket-cover Evap				$ 9.08
20	216230300		Cover, Temp Control				$ 49.88
21	216521200		Control-temperature		Appelez-nous	-
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216084200		Cover, Evaporator		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216607200		Shield-light		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303212912		Cover, Hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
42	216485500		Shelf-cantilever, Full Width, Glass		Appelez-nous	-
47	5303288233		Baffle-plate		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	5303212704		Screw,channel Door		Appelez-nous	-
50	216394050		Bracket-motor Mtg Fan   (Replaces: 216394000)				$ 22.75
56	09950853		Screw, Knob		Appelez-nous	-
59	216139400		Basket		Appelez-nous	-
60	297013500		Slide-basket   (Replaces: 5303212693)				$ 38.98
62	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
69	5305878546		Bumper, Basket				$ 7.23
72	216482900		Grille/kickplate		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
80	06594601		Bracket, Control				$ 17.64
90	5303297123		Screw, Th, 8-32 X 2-1/2		Appelez-nous	-
93	5303302760		Screw				$ 8.72
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
108	216388600		Trap-drain				$ 2.36
127	5303311565		Clip-cable				$ 2.10
131	216484900		Channel-shelf Mtg,back		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
143	216608200		Shelf-complete,cantilever		Appelez-nous	-
144	216608100		Shelf-complete,fixed		Appelez-nous	-
*87080	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
137A	215919161		Frame-full Shelf, Cantilever		Appelez-nous	-
137B	216485200		Frame-fixed Shelf		Appelez-nous	-
138A	216492200		Trim-cantilever/fixed Shelf,24.21`` ,glass,front		Appelez-nous	-
138B	216492201		Trim-cantilever Shelf,24.21`` ,glass ,front		Appelez-nous	-
253A	216492300		Trim-cantilever/fixed Shelf,24.21`` ,rear		Appelez-nous	-
253B	216492301		Trim-cantilever/fixed Shelf,24.21`` ,rear		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
