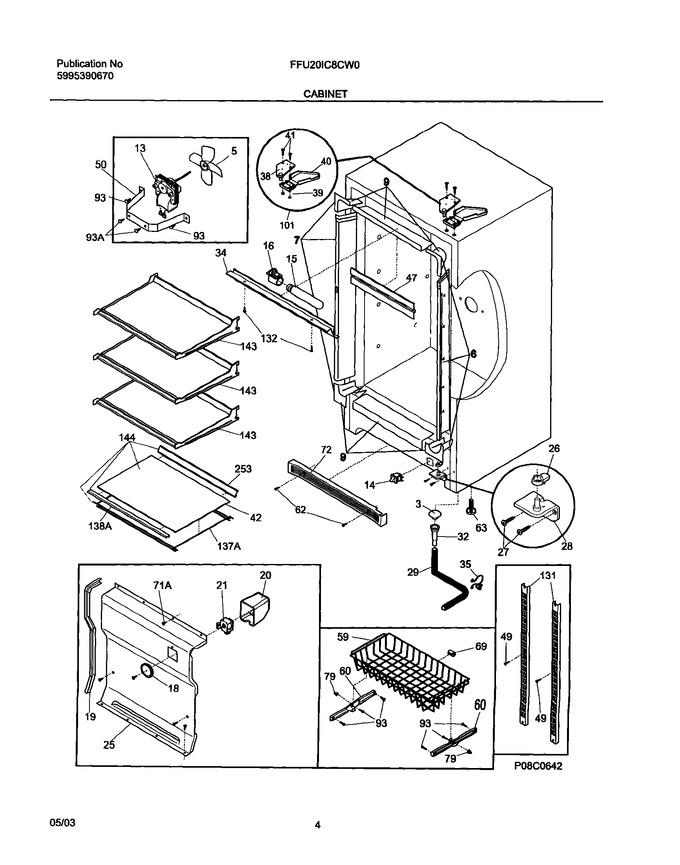

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
18	216707200		Knob,temp Control				$ 44.10
19	216204901		Gasket-cover Evap				$ 9.08
20	216230300		Cover, Temp Control				$ 49.88
25	216820300		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
27	154518001		Screw,hinge Mtg ,10 (a) X 0.875 ,btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	216816212		Shield-light		Appelez-nous	-
35	216629700		Clip,drain Hose		Appelez-nous	-
38	216808900		Hinge,plate ,top				$ 92.87
39	5303294372		Nut-insert,1/4-20 Unc ,hinge				$ 43.68
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 12.65
41	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg   (Replaces: 216850900)				$ 13.46
42	216679400		Glass,shelf ,24.88`` X 14.57``		Appelez-nous	-
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 25.31
49	5303212704		Screw,channel Door		Appelez-nous	-
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
59	216880100		Basket,(2)				$ 104.32
60	297013500		Slide, Basket (4)   (Replaces: 5303212693)				$ 38.98
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
69	5305878546		Bumper, Basket				$ 7.23
72	216174000		Grille/kickplate,white		Appelez-nous	-
79	301036		Nut-insert   (Replaces: 3017666)				$ 15.90
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
101	216835200		Top Hinge Kit				$ 50.99
131	216484900		Channel-shelf Mtg,back		Appelez-nous	-
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
143	216904400		Shelf,cantilever ,complete Assy				$ 211.59
144	216679200		Shelf,fixed ,complete Assy		Appelez-nous	-
253	216492300		Trim-shelf,fixed/cantil ,24.21`` ,rear		Appelez-nous	-
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	5303302760		Screw,round Head Sems ,10-32 X 0.375				$ 8.72
F13	5304436055		Motor,evaporator Fan ,115 V   (Replaces: 216822500)				$ 184.37
F137	216485200		Frame-fixed Shelf		Appelez-nous	-
F138	216492200		Trim-shelf,fixed/cantil ,24.21`` ,glass ,front		Appelez-nous	-
F14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
F16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
F21	216844500		Control-temperature				$ 70.72
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	216795508		Energy Guide		Appelez-nous	-
NI	216893800		Cover,external ,ice Maker ,(2)		Appelez-nous	-
NI	09948773		Insulation, Drain Tube				$ 12.60
