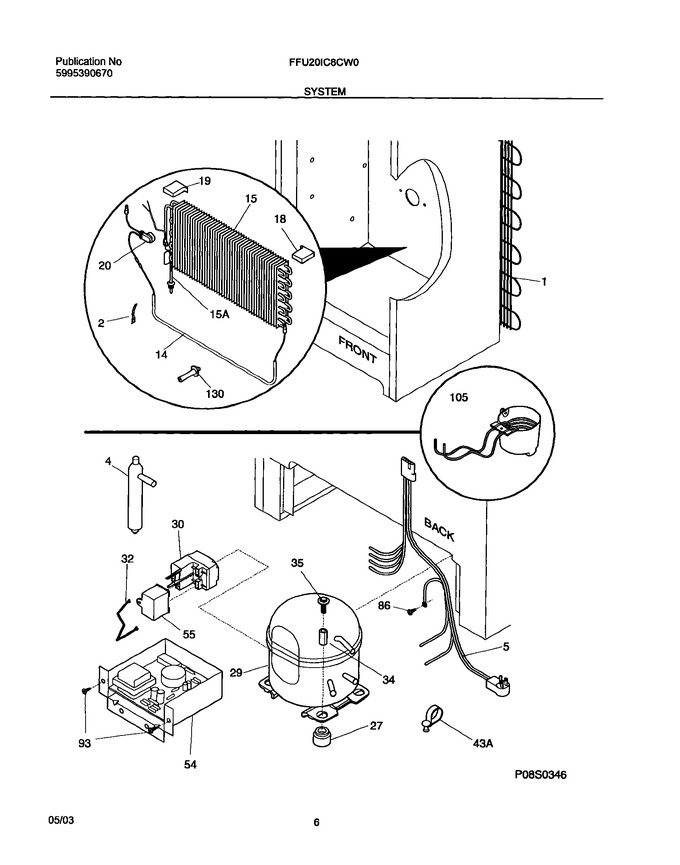

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 27.52
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	216851800		Compressor,w/o Electricals		Appelez-nous	-
30	5304491584		Controller   (Replaces: 216649318)			Immediately	$ 101.35
32	216649100		Clamp,elec Cont Mtg ,compressor				$ 12.50
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
105	216999900		Cup-drain   (Replaces: 216854000)				$ 169.39
130	216486800		Support,evaporator Mtg		Appelez-nous	-
43A	216629700		Clip,drain Hose		Appelez-nous	-
F1	5300083897		Condenser				$ 538.37
F14	216730700		Heater-defrost			Immediately	$ 116.44
F15	297414901		Evaporator   (Replaces: 216737300)			Immediately	$ 171.34
F15A	216783200		Heat Exchanger,suct/cap Tube			Immediately	$ 91.09
F5	216888700		Harness-main				$ 276.66
F54	216833800		Electronics,high Voltage ,w/o Battery		Appelez-nous	-
F55	218909912		Capacitor,run ,50/60 Hz ,220 Vac ,12 Microfarad   (Replaces: 216787800)			Immediately	$ 74.75
NI	216502500		Sleeve,suction Line				$ 10.85
NI	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-
