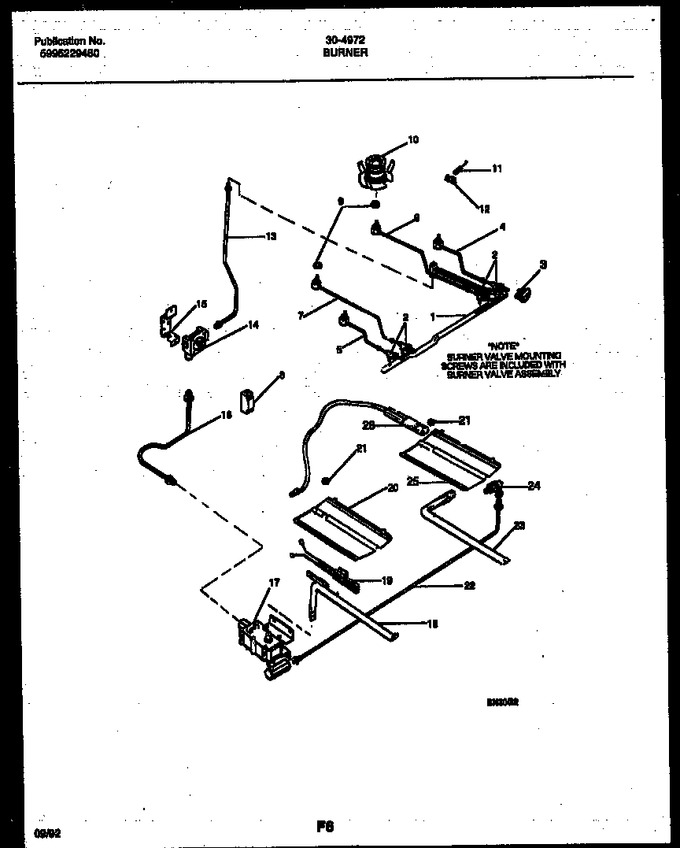

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271375 | Manifold Pipe |
|
- | |||||
| 2 | 316020400 | Valve-top Burner, (4), With Mtg Screws |
|
$ 117.44 | |||||
| 3 | 316032000 | Switch-igniter, (4) |
|
$ 58.70 | |||||
| 4 | 5303269492 | Tube-burner, Rf |
|
- | |||||
| 5 | 5303269493 | Tube-burner, Lf |
|
- | |||||
| 6 | 5303269494 | Tube-burner, Rr |
|
- | |||||
| 7 | 5303269495 | Tube-burner, Lr |
|
- | |||||
| 8 | 5304505695 | Spark Module (Replaces: 5303280394) |
|
Immediately | $ 68.16 | ||||
| 10 | 316010600 | Burner Assy-top, Sealed, (4), Includes, 11, 44, 45, & 50 |
|
- | |||||
| 11 | 316011200 | Igniter - Top Burner (4), W/ Mtg Bracket |
|
Immediately | $ 38.68 | ||||
| 13 | 5303208495 | Tube, Aluminum, Rgltr To Manf, With Fittings |
|
- | |||||
| 14 | 5303280582 | Regulator-pressure |
|
- | |||||
| 15 | 08067934 | Bracket-regulator |
|
- | |||||
| 16 | 5303208494 | Tube-valve To Rgltr |
|
- | |||||
| 17 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| 18 | 3131290 | Burner-oven |
|
- | |||||
| 19 | 5303935066 | Igniter-oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 20 | 3131284 | Baffle-oven Burner |
|
$ 155.77 | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 22 | 5303208493 | Tube-valve To Mixer |
|
- | |||||
| 23 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| 24 | 5303208640 | Mixer Elbow |
|
- | |||||
| 25 | 5303210379 | Baffle-broiler |
|
$ 175.88 | |||||
| 26 | 5303935068 | Ignitor-broiler (Replaces: 5308067970) |
|
$ 166.55 |
