02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Body Parts
06 - Cooktop And Drawer Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:

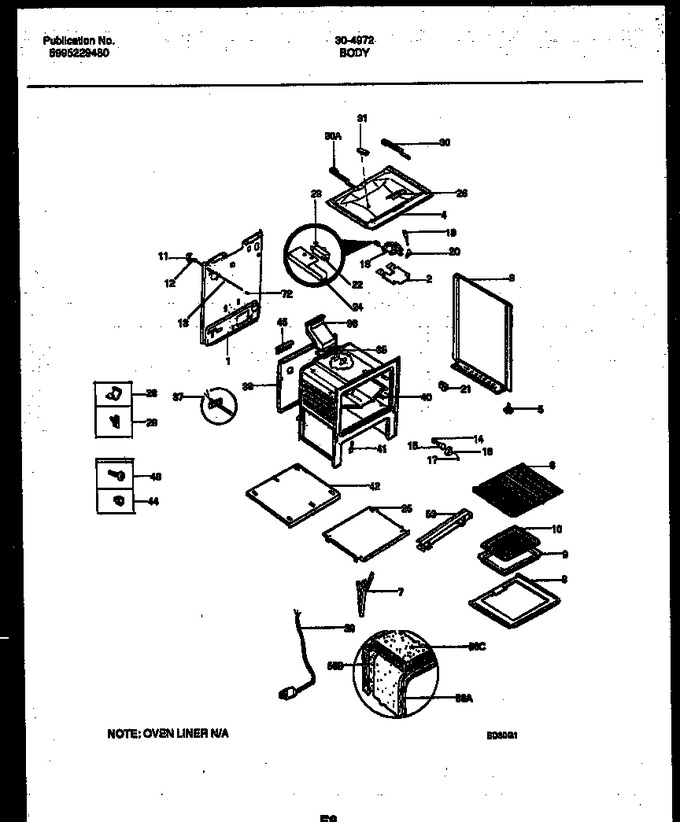

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203082 | Back-main |
|
- | |||||
| 2 | 3131314 | Shield-oven-top |
|
- | |||||
| 3 | 5303269518 | Panel-bodyside, White, Rh |
|
- | |||||
| 4 | 3011597 | Burner Box |
|
- | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 6 | 5303281625 | Rack Oven |
|
- | |||||
| 7 | 316007002 | Hinge-oven Door, (2) |
|
$ 244.07 | |||||
| 8 | 5303212540 | Panel-oven Bottom |
|
- | |||||
| 9 | 5303013568 | Pan-broiler |
|
- | |||||
| 10 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 11 | 5303131289 | Bracket-light Switch |
|
- | |||||
| 12 | 5303202622 | Switch-oven Light, Door Frame |
|
- | |||||
| 13 | 5303269501 | Rod-light Switch |
|
- | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Lamp/light Bulb, Oven (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204585 | Retainer-glass |
|
- | |||||
| 18 | 5303015453 | Latch-door |
|
$ 172.04 | |||||
| 19 | 5303131357 | Handle-latch |
|
$ 37.33 | |||||
| 20 | 3203218 | Knob-latch |
|
- | |||||
| 21 | 3014099 | Spacer,bodyside |
|
$ 3.62 | |||||
| 22 | 5303269499 | Switch Latching |
|
$ 20.53 | |||||
| 23 | 08067776 | Fastener-push-on |
|
- | |||||
| 24 | 3051413 | Shield-latch |
|
- | |||||
| 25 | 3131313 | Shield-heat-lower |
|
- | |||||
| 26 | 08067757 | Cover Plate |
|
- | |||||
| 28 | 3011813 | Clip-wire |
|
$ 14.79 | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 30 | 5303283574 | Bracket-hinge, Main Top Rh |
|
- | |||||
| 18A | 3131593 | Shield-latch, Top (non-illustrated) |
|
- | |||||
| 20A | 08013188 | Screw, Set, 10-24 X 3/16, Latch Knob |
|
- | |||||
| 22A | 08067978 | Stud-spacer (non-illustrated) |
|
- | |||||
| 30A | 5303283575 | Bracket-hinge, Main Top, Lh |
|
- | |||||
| 3A | 5303269519 | Panel-bodyside, White, Lh (non-illustrated) |
|
- | |||||
| 3C | 3200834 | Shield-heat, Body Side (non-illustrated) |
|
- | |||||
| 3D | 3200846 | Fastener-edge Mtg (non-illustrated) |
|
- | |||||
| 3E | 08067992 | Shield-wool, Galv Steel (non-illustrated) |
|
- | |||||
| 5A | 5303288460 | Nut, T-type, Leveling Screw (non-illustrated) |
|
$ 27.14 | |||||
| 5B | 3934056 | Anti-tip Kit (non-illustrated) |
|
- | |||||
| 8A | 3014226 | Support-oven Bottom, (non-illustrated) |
|
- |
