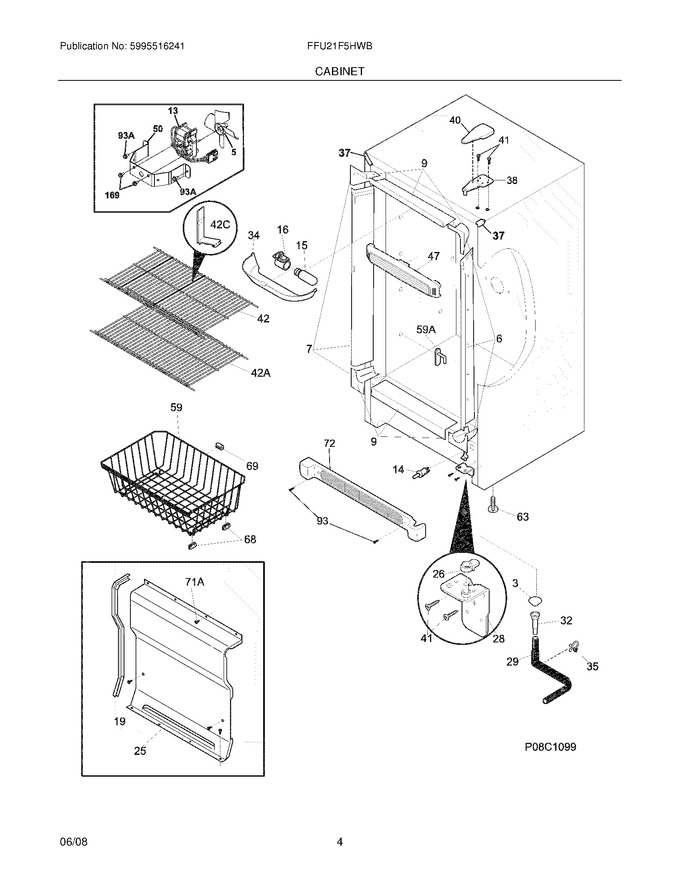

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
7	297201100		Breaker Kit W/corners,lock Catch				$ 89.57
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
14	297243800		Switch,light/lamp ,plunger				$ 36.68
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099251		Cover-evaporator				$ 109.93
26	216503300		Ramp,door Closer				$ 8.82
28	297283900		Hinge-bottom,stepped Pin   (Replaces: 297240800)			Immediately	$ 54.23
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
34	297184400		Shield-light				$ 21.16
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	297283803		Hinge-upper   (Replaces: 297164300)			Immediately	$ 19.52
40	297164400		Cover-hinge				$ 12.65
41	240578902		Screw,tamper Proof ,1/4-20 X 5/8   (Replaces: 297236200)			Immediately	$ 14.18
42	297119700		Shelf,wire ,16.69x27.88 ,white ,(3)		Appelez-nous	-
47	297192903		Baffle,air   (Replaces: 297192900)			Immediately	$ 25.31
50	216394050		Bracket,fan Motor Mount				$ 22.75
59	297210900		Basket		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide Basket (4)				$ 35.25
69	5305878546		Bumper Basket (2)				$ 7.23
72	297198900		Grille/kickplate,32`` ,white				$ 30.71
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
42A	216458400		Shelf,14.50x27.88		Appelez-nous	-
42C	297183702		Divider,blue ,wire Shelf				$ 13.52
59A	216486500		Stop-basket,(2)				$ 20.58
71A	297146800		Screw,8-18ab X 0.470 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	216502400		Grommet-shelf Mtg				$ 16.63
NI	297241400		Label,ez Start Guide		Appelez-nous	-
NI	216982602		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
