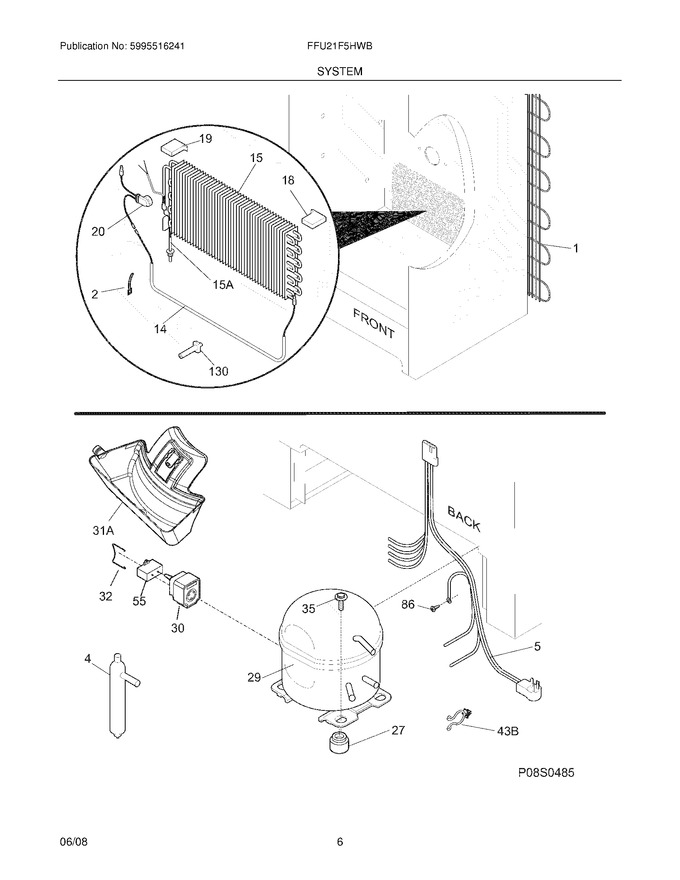

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
14	216730700		Heater-defrost			Immediately	$ 116.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954236		Controller,compressor   (Replaces: 216954215)				$ 93.78
32	216954300		Clip,controller				$ 17.01
35	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
130	297244700		Support,evaporator Mtg				$ 4.26
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 91.82
31A	297231901		Pan-drain   (Replaces: 297231900)				$ 46.17
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F1	5300083897		Condenser				$ 538.37
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F29	240550948		Compressor,w/o Electricals   (Replaces: 297223200)			Immediately	$ 292.50
F5	297237600		Harness-main				$ 107.12
F55	297286803		Capacitor-run,15 Mf   (Replaces: 216985001)			Immediately	$ 28.77
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297018400		Thermistor			Immediately	$ 79.52
NI	297102800		Spacer-tube		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 10.85
