SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Burner


07 - Body


09 - Door/drawer

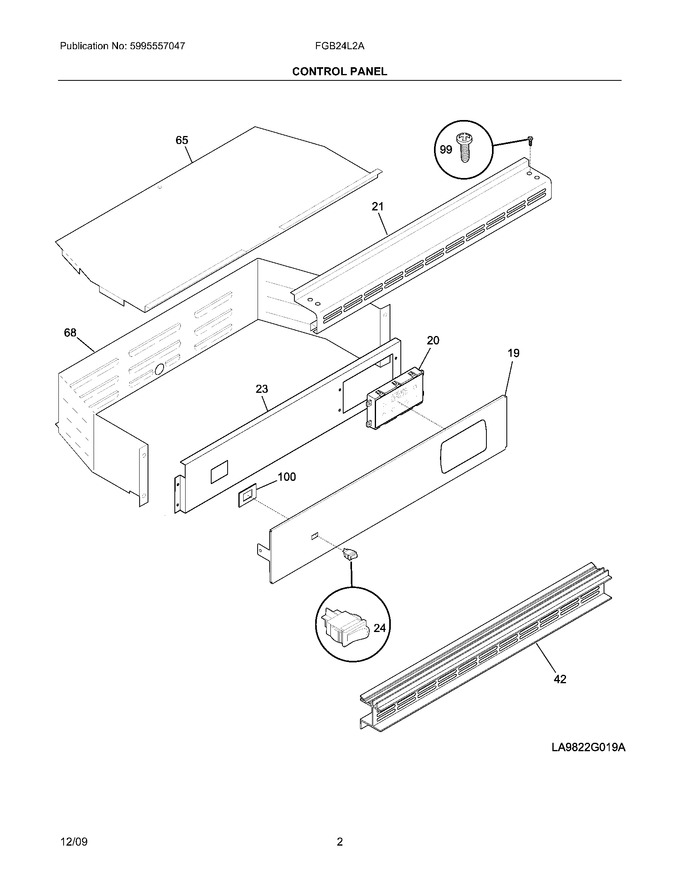

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318234105		Panel,control ,white		Appelez-nous	-
21	318176501		Trim,top ,white		Appelez-nous	-
23	318015037		Bracket,clock/timer Mtg		Appelez-nous	-
42	5303271089		Trim,center Vent ,white		Appelez-nous	-
65	318038804		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
99	5303131766		Screw,6-32 X 0.375 ,top Trim				$ 10.87
100	318112200		Plate,mounting ,rocker Switch		Appelez-nous	-
F20	318185336		Clock/timer,eoc ,white ,es100		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
NI	318214400		Overlay,clock ,white		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304414648		Screw,10-24 ,(2)   (Replaces: 5303308458)				$ 14.18

    View Diagram in Separate Window       Print Part List
