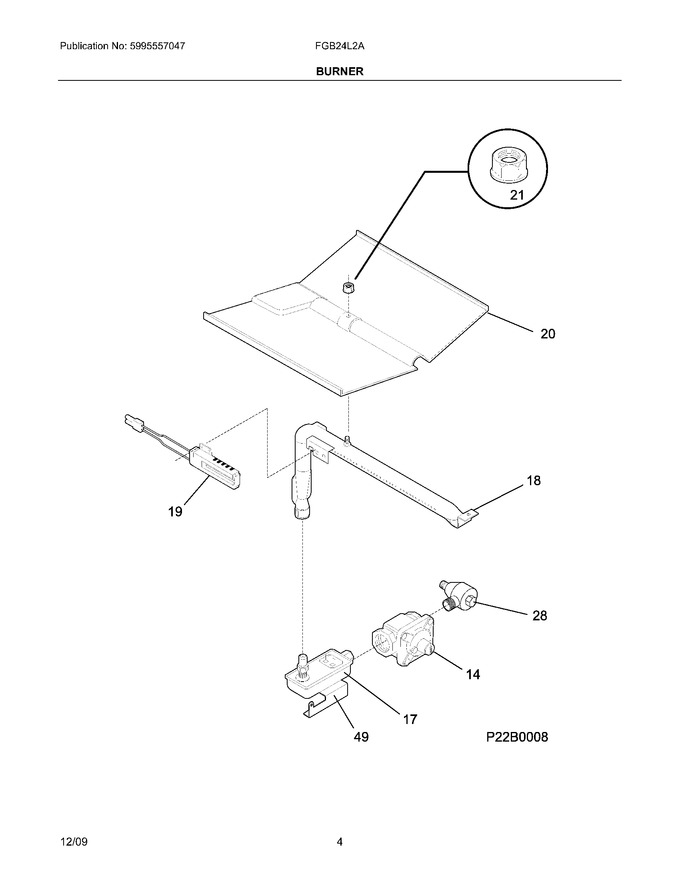

05 - Burner


07 - Body


09 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	3203676		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,keps ,10-24   (Replaces: 3201885)				$ 0.41
49	5303308469		Bracket,safety Valve		Appelez-nous	-
F14	5303210167		Regulator,pressure		Appelez-nous	-
F17	3203702		Valve-safety		Appelez-nous	-
F18	5303210787		Burner-oven		Appelez-nous	-
F19	5303935066		Ignitor,oven Burner   (Replaces: 318177710)			Immediately	$ 59.58
F28	5303295305		Valve-shut Off		Appelez-nous	-
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	5303300195		Screw,10-32 X 0.375 ,(2)		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
