SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Burner

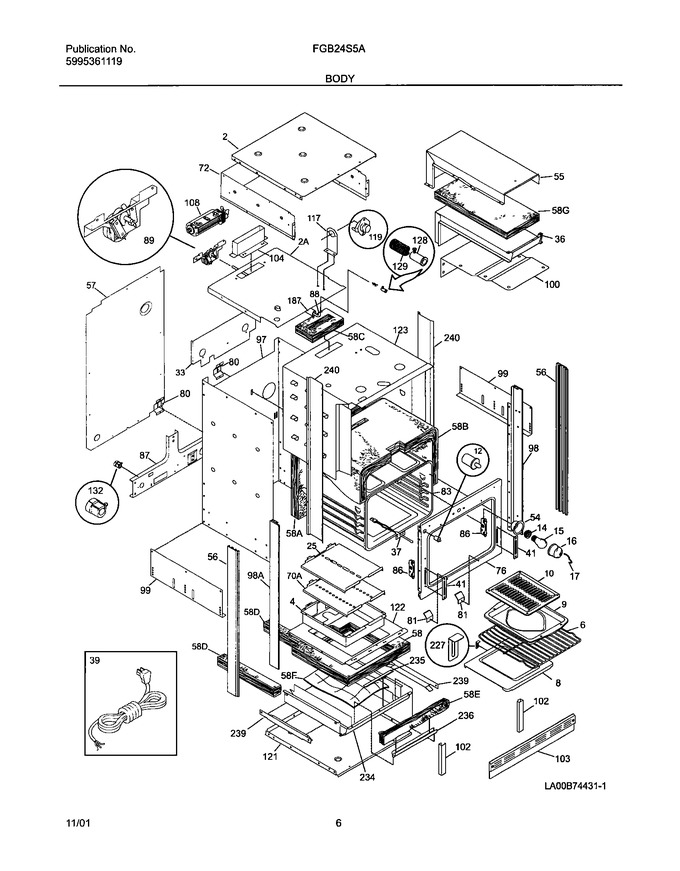

07 - Body


09 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318145003		Wrapper-base		Appelez-nous	-
4	318161500		Box-oven Burner		Appelez-nous	-
6	5303299366		Rack-oven		Appelez-nous	-
8	318121400		Panel-oven Bottom		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
12	318394803		Switch,oven Light ,door Frame   (Replaces: 318089910)			Immediately	$ 44.23
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	5303210844		Shield-heat, Lower		Appelez-nous	-
33	318187301		Shield-housing		Appelez-nous	-
36	3203725		Flue		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
55	5303326219		Shield,flue		Appelez-nous	-
56	5303308459		Trim-bodyside		Appelez-nous	-
57	318071130		Shield,rear Wall		Appelez-nous	-
58	318133735		Insulation,oven Bottom		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
76	318056139		Front-oven		Appelez-nous	-
80	318192400		Spring,oven				$ 312.53
81	5303323710		Bracket-oven		Appelez-nous	-
83	318089411		Liner,oven Assy		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
87	5303308443		Bracket-safety Valve		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
89	318095957		Motor,latch Assy ,w/brkt & Switch   (Replaces: 318095937)			Immediately	$ 127.75
97	318066803		Wrapper,back & Sides		Appelez-nous	-
98	318029400		Trim-side, Inner, Rh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
100	5303302715		Shield,flue ,bottom		Appelez-nous	-
102	3203688		Support,oven Front		Appelez-nous	-
103	5303316734		Trim,base ,white ,lower		Appelez-nous	-
104	318170210		Flue		Appelez-nous	-
117	5303302718		Bracket,thermo Protect		Appelez-nous	-
121	318145001		Wrapper-base		Appelez-nous	-
122	318179000		Shield-insulation,base		Appelez-nous	-
123	318071421		Shield-insulation,top & Sides		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
187	318013501		Tube,latch Rod		Appelez-nous	-
227	5303323958		Retainer,oven Bottom		Appelez-nous	-
234	5303210851		Shield, Burner Box		Appelez-nous	-
235	5303326207		Bracket		Appelez-nous	-
236	318108900		Shield,insulation ,1.25x1.0x12.9		Appelez-nous	-
239	5303326183		Angle,burner Box		Appelez-nous	-
240	318119300		Shield,bodyside		Appelez-nous	-
2A	318102401		Cover,mid Top		Appelez-nous	-
58A	318133736		Insulation,oven Back		Appelez-nous	-
58B	318133731		Insulation,oven Wrapper		Appelez-nous	-
58C	318133739		Insulation		Appelez-nous	-
58D	318133732		Insulation		Appelez-nous	-
58E	318133733		Insulation		Appelez-nous	-
58F	318133734		Insulation,flue		Appelez-nous	-
58G	5303326119		Insulation,flue		Appelez-nous	-
70A	5303210843		Shield-insulation		Appelez-nous	-
98A	318029401		Trim-side, Inner, Lh		Appelez-nous	-
F108	318073001		Motor-fan		Appelez-nous	-
F119	5303326252		Switch-thermal		Appelez-nous	-
F14	316116400		Receptacle, Oven Light   (Replaces: 5308011085)			Immediately	$ 56.10
F15	3201908		Light,oven		Appelez-nous	-
F37	316217002		Probe,oven Temp   (Replaces: 318198500)			Immediately	$ 61.23
F39	5303308453		Cord,electric Power		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-
NI	5303935083		Screw 10-16x1-1/4				$ 9.19
NI	318120710		Switch,cooktop Shutoff		Appelez-nous	-
NI	5303271097		Bracket,light Switch		Appelez-nous	-
NI	318005000		Thermostat,safety ,for Fan		Appelez-nous	-
