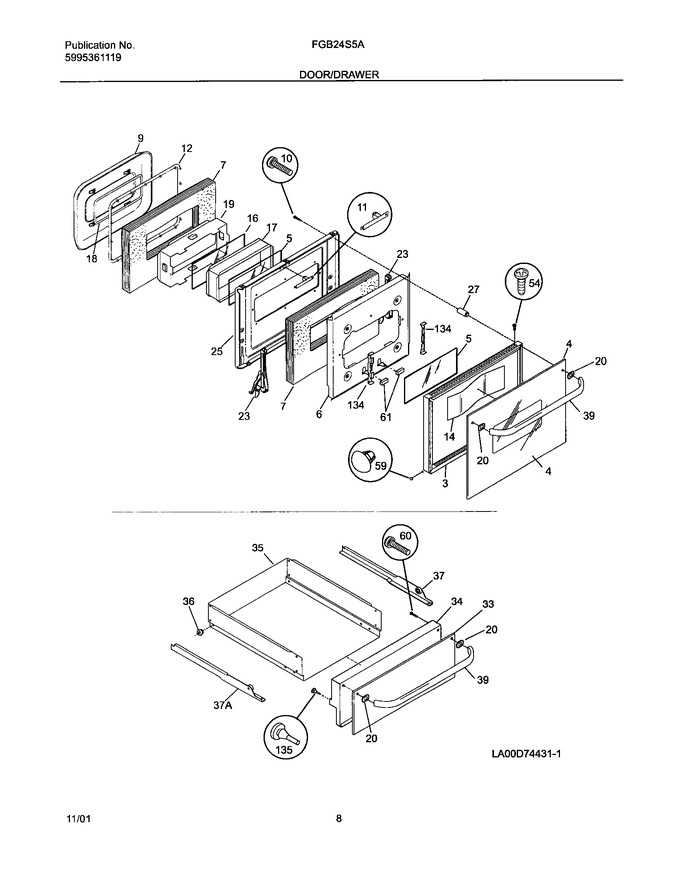

09 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026520		Trim,oven Door		Appelez-nous	-
4	318210907		Glass,oven Door ,white ,outer		Appelez-nous	-
5	318211700		Glass,oven Door ,inner		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	318133740		Insulation,oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
11	318065102		Latch-door				$ 58.81
12	318178801		Seal-oven Door		Appelez-nous	-
14	5303271093		Reflector, Aluminum Foil		Appelez-nous	-
16	5303324250		Glass,door ,13 1/2 X 6 1/2				$ 184.54
17	318139100		Spacer-glass, Upper Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
25	318048309		Liner,oven Door		Appelez-nous	-
27	318014400		Spacer,door		Appelez-nous	-
33	318211200		Glass,drawer ,white ,front		Appelez-nous	-
34	5303210010		Panel-inner Drawer		Appelez-nous	-
35	5303326215		Drawer		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
37	3203722		Rail-drawer Rh		Appelez-nous	-
39	316091104		Handle-door, White, Oven		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
59	3202113		Plug,button		Appelez-nous	-
60	5303310510		Screw,10-24 X 0.625				$ 14.18
61	5303300414		Spacer, Cork & Rubber				$ 13.18
134	318122101		Bracket-glass		Appelez-nous	-
135	3131903		Bumper				$ 55.36
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
NI	5303316982		Foam Seal,(3)		Appelez-nous	-
NI	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
NI	5303325981		Screw,10-16 X 1 1/2		Appelez-nous	-
