View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

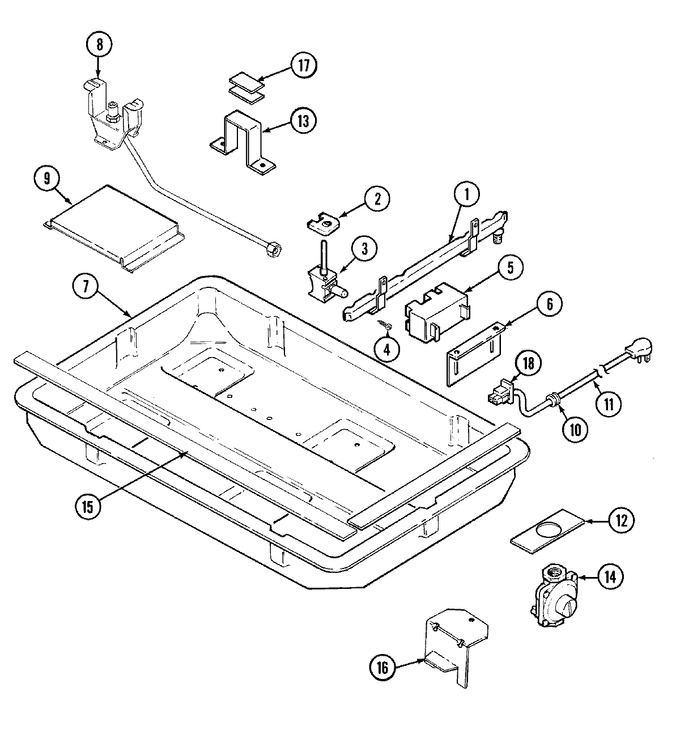

01 - Gas Controls/body
02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001348 | Pipe, Manifold | 11 |
|
- | ||||
| 2 | WP7403P367-60 | Switch, Burner (Replaces: 7403P367-60) | 11 |
|
$ 132.10 | ||||
| 3 | 74001383 | Valve, Burner | 11 |
|
- | ||||
| 3 | 7724P004-60 | Cover, Burner Valve | 11 |
|
- | ||||
| 4 | 7101P044-60 | Screw, Valve | 11 |
|
- | ||||
| 5 | 12001596 | Module, Spark (Replaces: 7431P027-60) | 11 |
|
Immediately | $ 85.93 | |||
| 5 | 12001596 | Module, Spark (Replaces: 74003288) | 18 |
|
Immediately | $ 85.93 | |||
| 6 | W11233072 | Screw (Replaces: 7101P290-60) | 11 |
|
Immediately | $ 12.62 | |||
| 6 | 3801F304-45 | Bracket, Spark Module | 11 |
|
- | ||||
| 7 | 74001208 | Box, Burner | 13 |
|
- | ||||
| 7 | 4011F246-80 | Box, Burner | 11 |
|
- | ||||
| 8 | 74001370 | Orifice Assy. | 11 |
|
- | ||||
| 8 | 74001372 | Orifice Assy. | 11 |
|
- | ||||
| 8 | 74001369 | Orifice Assy. | 11 |
|
- | ||||
| 8 | 74001371 | Orifice Assy. | 11 |
|
- | ||||
| 9 | 4005F427-51 | Cover, Access | 11 |
|
- | ||||
| 10 | 8007P003-60 | Bushing, Snap | 11 |
|
- | ||||
| 11 | 7402P014-60 | Cord, Power | 11 |
|
- | ||||
| 12 | 7208P019-60 | Seal, Manifold Pipe | 11 |
|
- | ||||
| 13 | 3801F298-45 | Bracket, Main Top | 11 |
|
- | ||||
| 14 | W11170853 | Regulator, Pressure (Replaces: 74001252) | 11 |
|
$ 283.08 | ||||
| 15 | 8270P100-60 | Tape, Foam Seal | 11 |
|
- | ||||
| 16 | 3801F192-45 | Bracket, Tie Down | 11 |
|
- | ||||
| 16 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 11 |
|
$ 12.69 | ||||
| 17 | 12400021 | Tape Burner Box Seal 107`` | 11 |
|
- | ||||
| 18 | 7401P018-60 | Block | 11 |
|
- | ||||
| 18 | 7401P017-60 | Block, Disconnect (pin) | 11 |
|
- |
