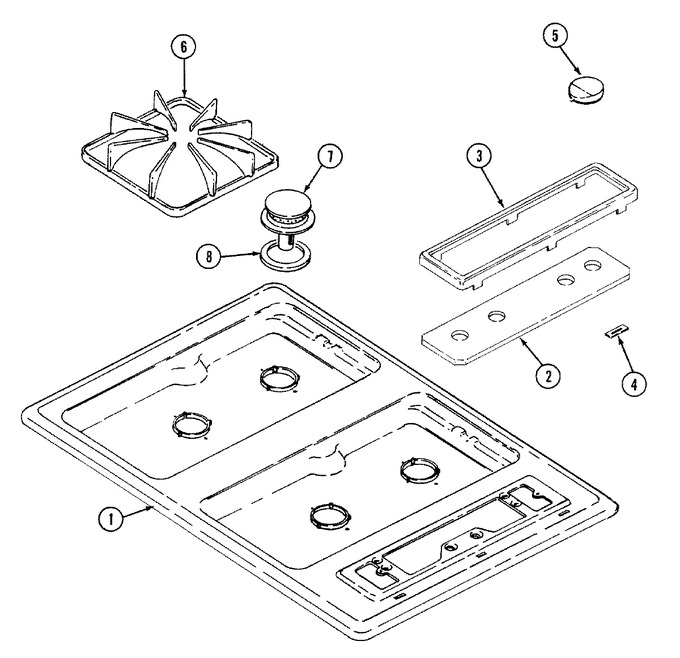

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Gas Controls/body
02 - Top Assembly
03 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001W091-81 | Top, Main (wht) | 11 |
|
- | ||||
| 2 | 7208P015-60 | Seal, Glass Spacer | 11 |
|
- | ||||
| 2 | 74001298 | Glass, Control Panel | 11 |
|
- | ||||
| 3 | 7720P124-60 | Trim, Control Panel | 11 |
|
- | ||||
| 4 | 7112P076-60 | Clip, Push-on | 11 |
|
- | ||||
| 5 | 74001465 | Knob, Valve----na | 11 |
|
- | ||||
| 6 | 2003W027-00 | Grate (blk) | 11 |
|
- | ||||
| 6 | 74001059 | Grate (blk) | 14 |
|
- | ||||
| 6 | 74001059 | Grate (blk) | 17 |
|
- | ||||
| 6 | 74001653 | Grate (blk) | 16 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner) | 11 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 11 |
|
$ 6.98 | ||||
| 7 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 11 |
|
Immediately | $ 92.69 | |||
| 7 | WP3412D024-09 | Burner, Sealed (blk) (Replaces: 74003963) | 19 |
|
Immediately | $ 92.69 | |||
| 7 | 74004053 | Igniter, Top Burner | 19 |
|
Immediately | $ 24.25 | |||
| 8 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 11 |
|
Immediately | $ 92.69 | |||
| NI | 5125A234-60 | Wires, Loose | 11 |
|
- | ||||
| NI | 5111A610-60 | Wire, Igniter - R | 11 |
|
- | ||||
| NI | 5111A261-60 | Wire, Igniter - R | 11 |
|
- | ||||
| NI | 8111P017-60 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 74003313 | Manual, Use & Care (fch) | 11 |
|
- |
