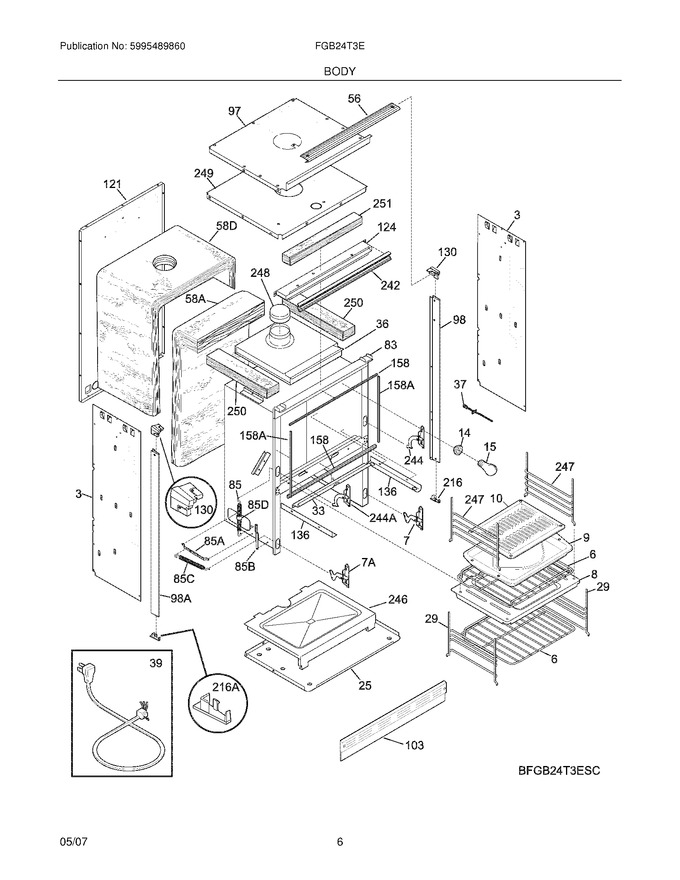

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303317132		Wrapper-side Outer		Appelez-nous	-
6	318345800		Rack,oven ,upper & Lower ,(3)		Appelez-nous	-
7	5303298313		Hinge Assy,rh Lower		Appelez-nous	-
8	318136500		Panel-oven Bottom		Appelez-nous	-
9	5303317977		Pan,broileroptional Access0ry		Appelez-nous	-
10	5303317976		Insert,broiler Panoptional Access0ry		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
25	5303317712		Shield-heat,lower		Appelez-nous	-
29	5303209887		Glide-broiler Rack		Appelez-nous	-
33	5303317128		Shield-heat		Appelez-nous	-
36	5303298341		Flue		Appelez-nous	-
39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
56	318028200		Trim-oven Top		Appelez-nous	-
83	318109511		Liner,oven Assy		Appelez-nous	-
85	5303317711		Spring-oven Door,lower		Appelez-nous	-
97	5303317130		Wrapper,top ,outer		Appelez-nous	-
98	318029001		Trim,bodyside ,black ,rh		Appelez-nous	-
103	5303316735		Trim,base ,black ,lower		Appelez-nous	-
121	5303317131		Wrapper-back		Appelez-nous	-
124	318076801		Box,horizontal Flue		Appelez-nous	-
130	318034600		Cap-end Top,black ,(2)		Appelez-nous	-
136	5303317129		Angle-rack Guide		Appelez-nous	-
158	5303207644		Seal-door,black ,top Broiler		Appelez-nous	-
216	318034500		Cap,end Bottom ,black ,rh		Appelez-nous	-
242	318027200		Trim,center ,black		Appelez-nous	-
244	5303205940		Hinge Assy,oven Door ,rh Upper		Appelez-nous	-
246	318133600		Panel-oven Bottom		Appelez-nous	-
247	3018717		Glide-oven Rack		Appelez-nous	-
248	5303317121		Cap-flue		Appelez-nous	-
249	5304400385		Wrapper-top,inner		Appelez-nous	-
250	318285042		Insulation,3`` X 2`` X 17.5`` ,(2)		Appelez-nous	-
251	318285048		Insulation,2``x 2.5``x 21.5``		Appelez-nous	-
58A	318285007		Insulation,oven Back		Appelez-nous	-
58D	318285008		Insulation,oven Wrapper		Appelez-nous	-
7A	5303298312		Hinge Assy,lh Lower		Appelez-nous	-
85A	318113300		Bracket,door Spring ,lower		Appelez-nous	-
85B	5303317126		Bracket,door Spring ,upper		Appelez-nous	-
85C	5303207651		Spring,oven Door ,(1)		Appelez-nous	-
85D	318166900		Sleeve-door Spring		Appelez-nous	-
98A	318029000		Trim,bodyside ,black ,lh		Appelez-nous	-
F158	5303295311		Seal-side,bake Oven		Appelez-nous	-
F216	318034501		Cap,end Bottom ,black ,lh		Appelez-nous	-
F244	5303205939		Hinge Assy,oven Door ,lh Upper		Appelez-nous	-
F37	316217005		Probe,oven Temp				$ 78.67
NI	318232522		Wiring Harness,main		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5304400429		Screw (8-18 X 1 )		Appelez-nous	-
