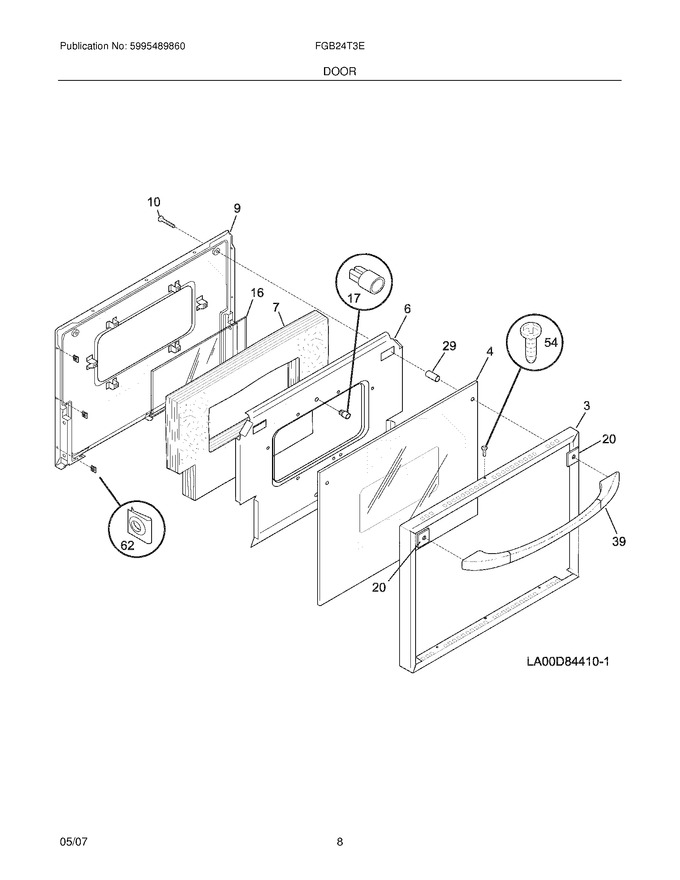

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026500		Trim,oven Door ,black		Appelez-nous	-
4	318178503		Glass,door ,black ,outer		Appelez-nous	-
6	318116600		Shield-wool		Appelez-nous	-
7	318285009		Insulation,oven Door		Appelez-nous	-
9	318048902		Liner,oven Door   (Replaces: 318048901)		Appelez-nous	-
10	5304500008		Screw,10-24 X 1.750 ,handle Mtg   (Replaces: 5304416408)				$ 12.13
16	318042310		Glass,door ,heat Barrier		Appelez-nous	-
17	5304400397		Fastener-spacer		Appelez-nous	-
20	5303300175		Spacer-handle,black		Appelez-nous	-
29	318014401		Spacer,door		Appelez-nous	-
39	318186101		Handle,door ,black		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
62	08010463		Fastener-clip		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
