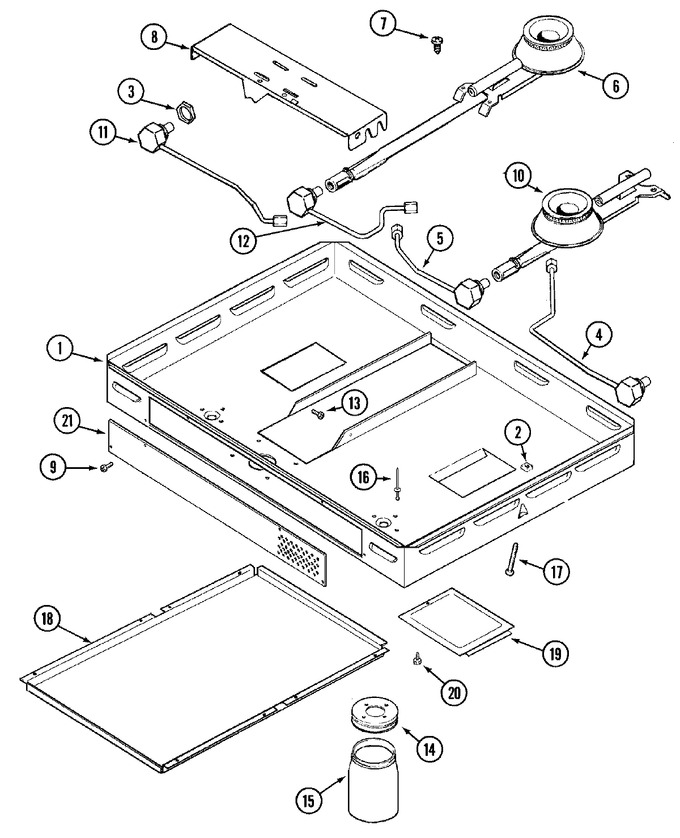

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y712275 | Box, Burner | 11 |
|
- | ||||
| 2 | M0282009 | Nut,square (Replaces: Y707124) | 11 |
|
$ 12.06 | ||||
| 3 | Y704947 | Washer | 11 |
|
- | ||||
| 3 | Y704977 | Nut, 5/8`` Hex | 11 |
|
- | ||||
| 4 | Y04100208 | Tube (rr) | 11 |
|
- | ||||
| 5 | Y04100209 | Tube (rf) | 11 |
|
- | ||||
| 6 | 74005189 | Burner (rear-blk) (Replaces: 71001934) | 11 |
|
$ 211.73 | ||||
| 7 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 8 | WP3801F403-80 | Bracket, Burner (Replaces: Y704519) | 11 |
|
$ 71.17 | ||||
| 9 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 10 | WP7505P283-60 | Burner (frt-blk) (Replaces: 71001933) | 11 |
|
$ 211.46 | ||||
| 11 | Y04100206 | Tube (rr) | 11 |
|
- | ||||
| 12 | Y04100207 | Tube (lf) | 11 |
|
- | ||||
| 13 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 14 | Y706006 | Lid, Jar | 11 |
|
- | ||||
| 15 | WPY707869 | Jar, Drain (Replaces: Y707869) | 11 |
|
$ 61.43 | ||||
| 16 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 11 |
|
$ 12.14 | ||||
| 17 | Y707121 | Screw | 11 |
|
- | ||||
| 18 | 3601F261-51 | Baffle, Bottom (lt) (Replaces: 704527) | 11 |
|
$ 216.98 | ||||
| 19 | 702333 | Cover, Access(r.h) | 11 |
|
- | ||||
| 20 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 21 | Y704538 | Cover, Front | 11 |
|
- |
