01 - Blower Assembly (plenum)
02 - Body
03 - Control Panel
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:

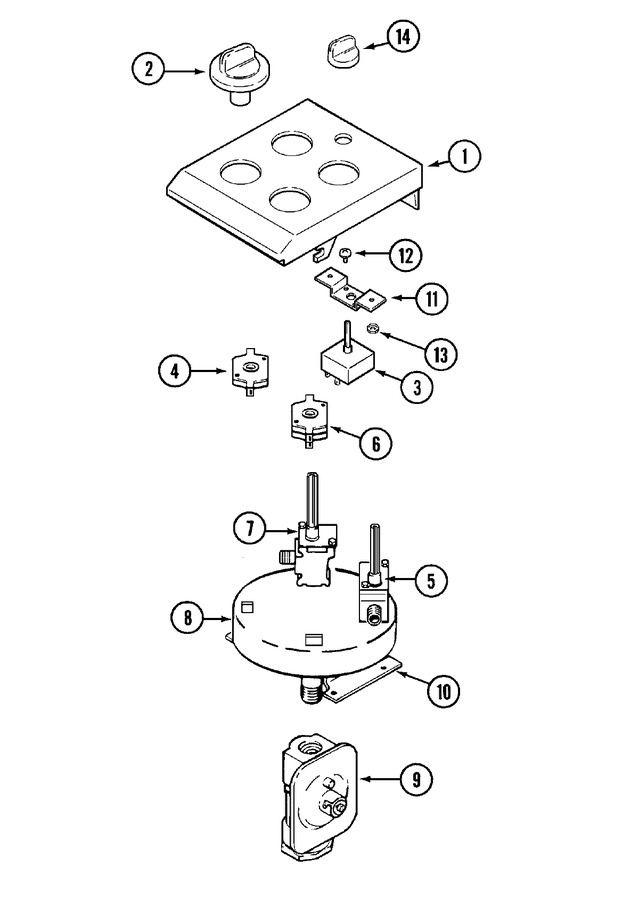

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002304 | Escutcheon (blk) | 11 |
|
- | ||||
| 2 | WP7733P184-60 | Knob, Burner (blk) (Replaces: 71002781) | 11 |
|
$ 45.03 | ||||
| 3 | 71001770 | Switch, Fan | 11 |
|
- | ||||
| 4 | WPY704512 | Switch, Valve (rt) (Replaces: Y704512) | 11 |
|
$ 98.02 | ||||
| 5 | WP7502P382-60 | Valve, Gas (rt) (Replaces: Y04100183) | 11 |
|
$ 240.81 | ||||
| 6 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 11 |
|
$ 98.42 | ||||
| 7 | WPY04100188 | Valve, Gas (lt) (Replaces: Y04100188) | 11 |
|
$ 222.85 | ||||
| 8 | 71002150 | Manifold, Gas | 11 |
|
- | ||||
| 9 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 11 |
|
Immediately | $ 215.01 | |||
| 10 | 71001642 | Bracket, Manifold | 11 |
|
- | ||||
| 11 | 71002153 | Bracket, Fan Switch | 11 |
|
- | ||||
| 12 | 71002058 | Screw, 8-32 (Replaces: Y04100363) | 11 |
|
$ 5.82 | ||||
| 13 | 71001561 | Palnut | 11 |
|
- | ||||
| 14 | 71002307 | Knob, Fan (blk) Nla | 11 |
|
- | ||||
| NI | 71001760 | Harness, Wire | 11 |
|
- | ||||
| NI | 12001809 | Lp Conversion Kit (Replaces: 71001160) | 11 |
|
$ 50.27 | ||||
| NI | 71002019 | Manual, Use & Care | 11 |
|
- |
