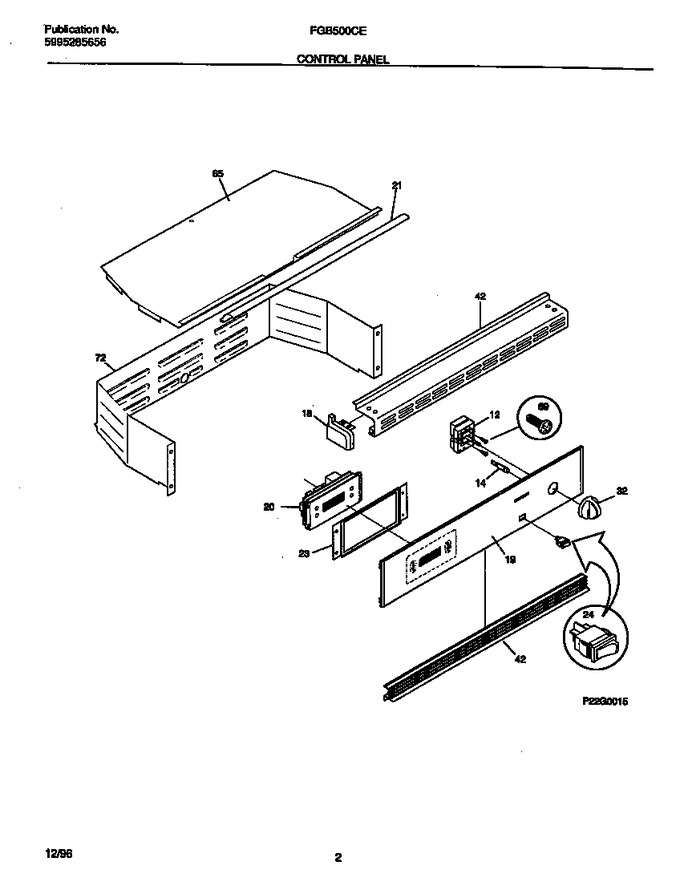

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318027301		Trim-vent, Black		Appelez-nous	-
14	318044602		Light/lamp, Indicator, Red		Appelez-nous	-
18	5303280339		End Cap, Black, Lh		Appelez-nous	-
18	5303280338		End Cap, Black, Rh (not Illustrated)		Appelez-nous	-
19	318129503		Panel-control		Appelez-nous	-
19	5303131766		Screw, 6-32 X 3/8``, Control Panel, (2) (not Illustrated)				$ 10.87
20	316066800		Clock/timer, Electronic, Black		Appelez-nous	-
21	318056901		Trim-canopy/shield, Black				$ 293.32
23	318015710		Bracket, Clock		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	318017205		Knob-thermostat		Appelez-nous	-
42	318028020		Trim-vent		Appelez-nous	-
65	5303308466		Cover-control Housing		Appelez-nous	-
69	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
72	5303302397		Housing,control		Appelez-nous	-
*25880	5303280380		Seal, Sponge		Appelez-nous	-
*25881	5303300414		Spacer, Cork & Rubber				$ 13.18
*25882	5303320423		Rivet, (2)		Appelez-nous	-
*25883	5303304692		Plate, Backup, Light Switch		Appelez-nous	-
*25884	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
12A	318058910		Thermostat-oven		Appelez-nous	-
12B	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2) (not Illustrated)		Appelez-nous	-
