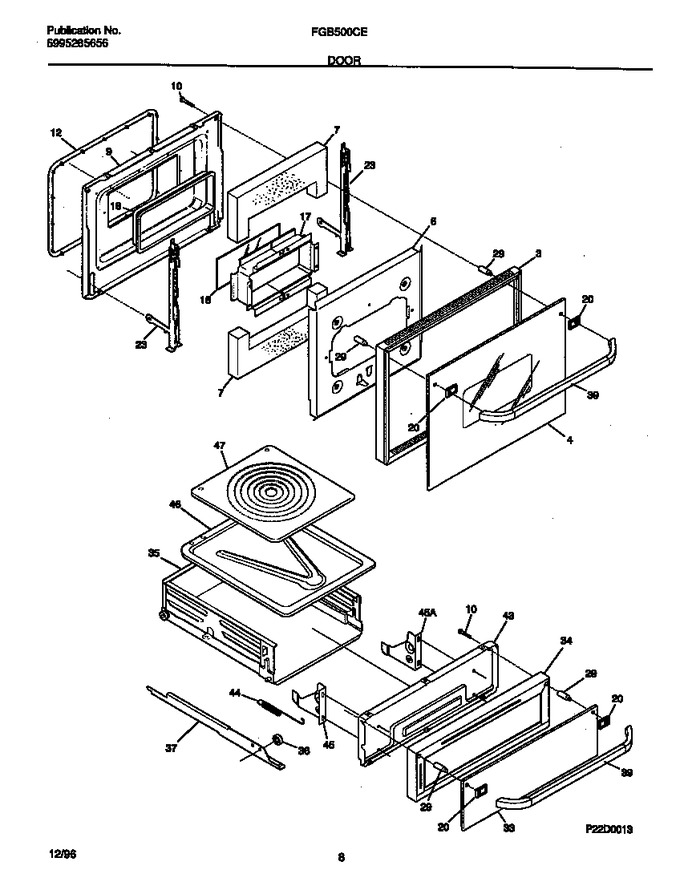

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107000		Drawer,broiler		Appelez-nous	-
3	5303212560		Trim-oven Door, Black		Appelez-nous	-
4	5303299478		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
8	5303016336		Glass-oven Door, Heat Barrier, Lower Oven		Appelez-nous	-
9	318048400		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle				$ 12.71
12	5303316768		Seal-oven Door, Lower		Appelez-nous	-
17	5303212864		Spacer-glass, Lower Oven		Appelez-nous	-
18	3016338		Seal-rope, Lower Oven				$ 43.20
20	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
20	5303300175		Spacer-handle,black		Appelez-nous	-
33	3203715		Glass-drawer, Front		Appelez-nous	-
34	318116000		Panel-inner Drw		Appelez-nous	-
36	5303308457		Roller		Appelez-nous	-
39	5303310510		Screw-handle Mtg (not Illustrated)				$ 14.18
39	5303300415		Handle-door, Black, Oven		Appelez-nous	-
43	318107800		Liner,broiler Door		Appelez-nous	-
44	5303131030		Spring-broiler		Appelez-nous	-
45	5303308471		Hinge-broiler, Lh		Appelez-nous	-
45	5303308472		Hinge-broiler, Rh		Appelez-nous	-
46	318126200		Pan-broiler		Appelez-nous	-
47	318126300		Insert-broiler Pan		Appelez-nous	-
*25902	3202113		Button, Plug		Appelez-nous	-
*25903	318136000		Panel, Broiler Drawer, Bottom		Appelez-nous	-
*25904	5303300414		Spacer, Cork & Rubber				$ 13.18
*25905	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
23A	3202464		Hinge-oven Door, Lower		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
37B	3203722		Rail-drawer Rh (not Illustrated)		Appelez-nous	-
37C	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl (not Illustrated)   (Replaces: 5303308458)				$ 14.18
