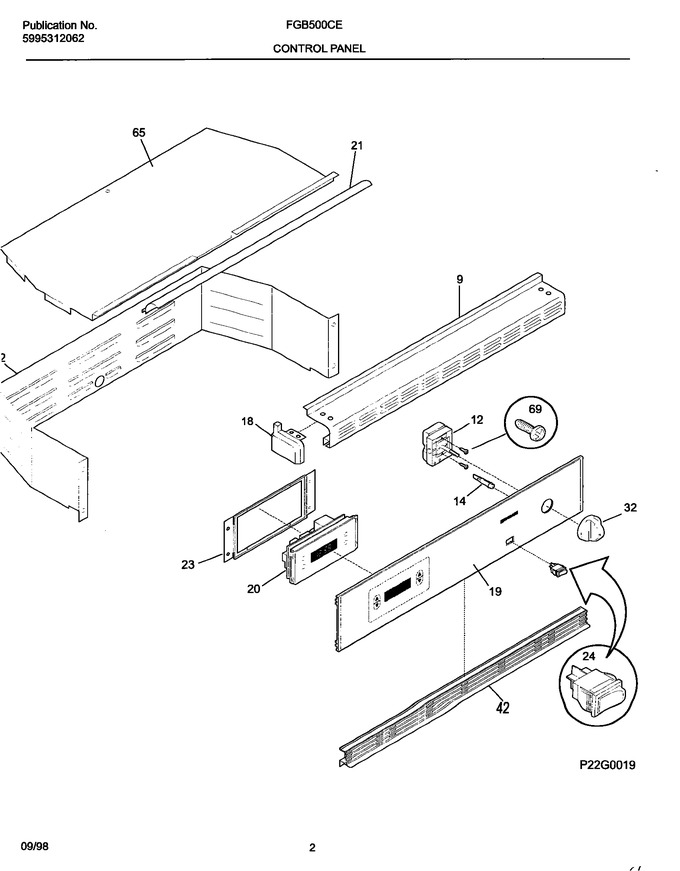

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318028020		Trim-splasher, Black		Appelez-nous	-
14	318044602		Light/lamp		Appelez-nous	-
18	5303280338		End Cap, Rh		Appelez-nous	-
19	318129503		Panel-control, Black		Appelez-nous	-
21	318056901		Trim-canopy/shield, Black				$ 293.32
23	318015710		Bracket, Clock		Appelez-nous	-
32	318017205		Knob-thermostat		Appelez-nous	-
42	318027301		Trim-vent, Black		Appelez-nous	-
65	5303308466		Cover-control Housing		Appelez-nous	-
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
72	5303302397		Housing,control		Appelez-nous	-
18A	5303280339		End Cap, Lh		Appelez-nous	-
F12	318058910		Thermostat-oven		Appelez-nous	-
F20	318011918		Clock/timer, Electronic, Black		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	5303311528		Screw, 6-20 X 5/8		Appelez-nous	-
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
