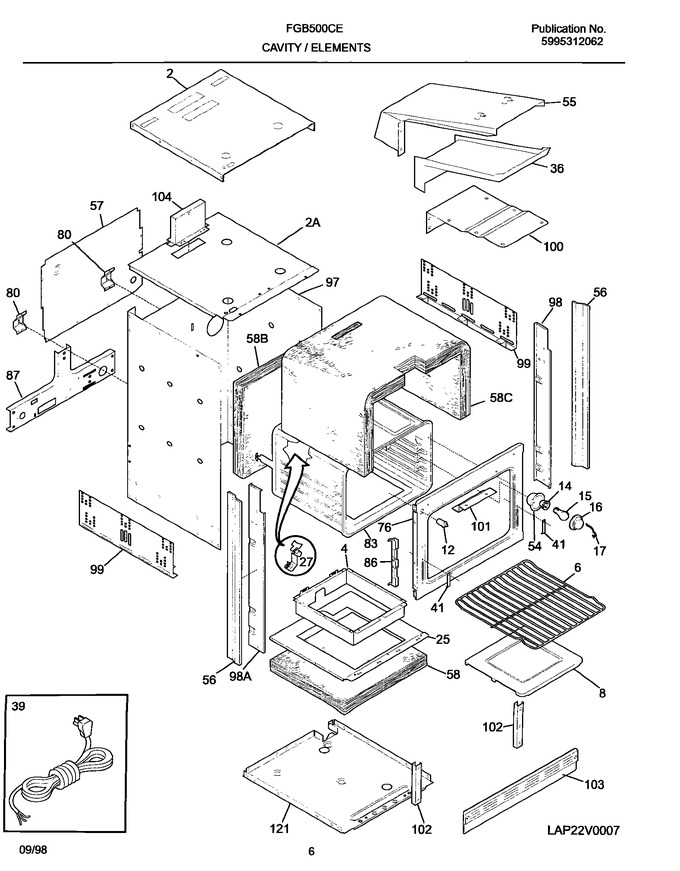

07 - Cavity/elements
08 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318101900 | Wrapper, Top |
|
- | |||||
| 4 | 318161500 | Box-oven Burner |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 8 | 318121400 | Panel-oven Bottom |
|
- | |||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 25 | 5303210706 | Shield-insulation, Base |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 36 | 3203725 | Flue |
|
- | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 55 | 3204210 | Shield-flue Cover |
|
- | |||||
| 56 | 318145508 | Trim-bodyside Black |
|
- | |||||
| 57 | 5303308476 | Shield-rear Wall |
|
- | |||||
| 58 | 5303280377 | Insulation, Oven Bottom |
|
- | |||||
| 76 | 318056120 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 318089400 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 87 | 5303308475 | Bracket-safety Valve |
|
- | |||||
| 97 | 318066801 | Wrapper-back Side |
|
- | |||||
| 98 | 318029400 | Trim-side Black |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 100 | 5303302715 | Shield-flue |
|
- | |||||
| 101 | 5303308474 | Shield,vent |
|
- | |||||
| 102 | 3203688 | Support-oven Front Black |
|
- | |||||
| 103 | 5303316735 | Trim-base Black |
|
- | |||||
| 104 | 3203730 | Adapter-flue |
|
- | |||||
| 121 | 318145001 | Wrapper-base |
|
- | |||||
| 2A | 5303305035 | Shield |
|
- | |||||
| 58B | 5303304703 | Insulation, Oven Back |
|
- | |||||
| 58C | 318132600 | Insulation Oven Wrapper |
|
- | |||||
| 98A | 318029401 | Trim-side Black |
|
- | |||||
| F12 | 5301314211 | Switch-light |
|
$ 95.29 | |||||
| F39 | 5303308453 | Cord,electric Power |
|
- | |||||
| NI | 5303300195 | Screw,10-32 X 3/8 |
|
- | |||||
| NI | 08011955 | Screw,10-24 X 3/8 |
|
Immediately | $ 9.36 | ||||
| NI | 5303311528 | Screw, Oval Hd, 6-20 X 5/8, Black |
|
- | |||||
| NI | 5303320422 | Screw-6-20 X 5/16 |
|
$ 12.71 |
