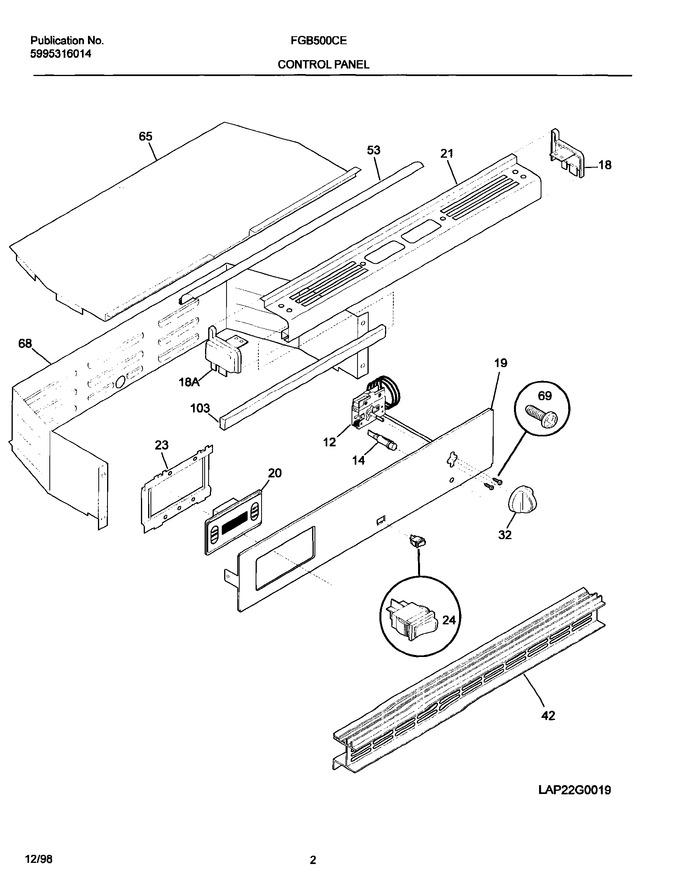

03 - Control Panel


05 - Burner


07 - Cavity/elements


09 - Door/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	318044602		Light/lamp		Appelez-nous	-
18	5303280338		End Cap, Black, Rh		Appelez-nous	-
19	318129505		Panel-control Black		Appelez-nous	-
21	318028020		Trim-splasher, Black		Appelez-nous	-
23	318015711		Bracket-clock Mtg		Appelez-nous	-
32	318016326		Knob		Appelez-nous	-
42	318027301		Trim-vent, Black		Appelez-nous	-
53	318056901		Trim-canopy/shield, Black				$ 293.32
65	5303308466		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing,control		Appelez-nous	-
69	5303288565		Screw, 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
103	5303280380		Seal, Sponge		Appelez-nous	-
18A	5303280339		End Cap, Black, Lh		Appelez-nous	-
F12	318058911		Thermostat		Appelez-nous	-
F20	318013908		Clock-timer		Appelez-nous	-
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	5303311528		Screw, 6-20 X 5/8		Appelez-nous	-
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
