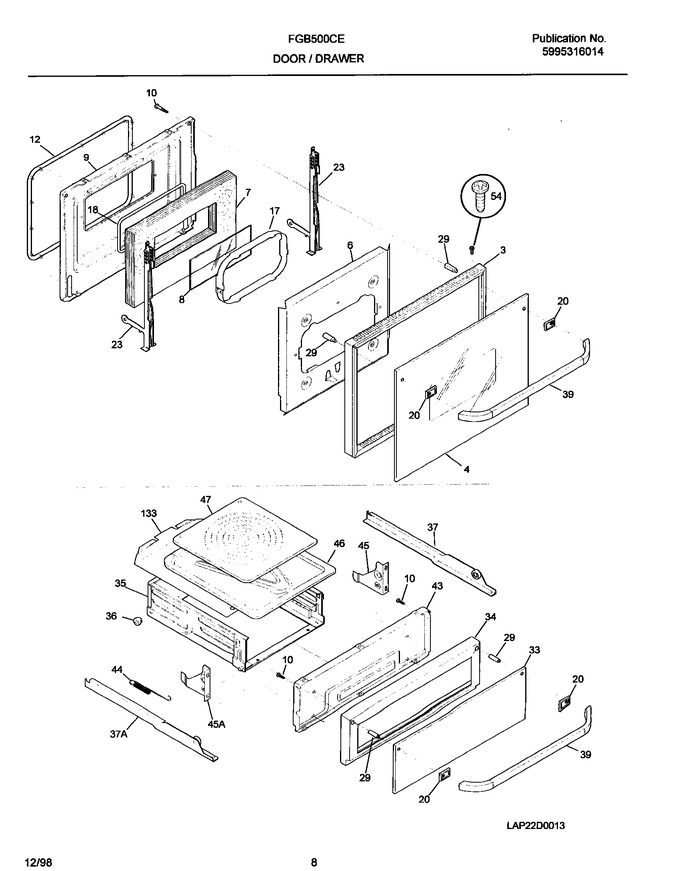

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026510		Trim-oven Door		Appelez-nous	-
4	3202420		Glass-oven Door,black		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	5303308470		Insulation-door		Appelez-nous	-
8	5303323828		Glass-oven Door		Appelez-nous	-
9	318048400		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle 10-24 X 2-3/16				$ 12.71
12	5303316768		Seal-oven Door		Appelez-nous	-
17	318162601		Spacer-glass		Appelez-nous	-
18	5303299723		Seal-rope		Appelez-nous	-
20	318014300		Spacer-handle,black				$ 36.44
23	318074103		Hinge-oven Door, (2)		Appelez-nous	-
29	66520020004		Spacer-handle		Appelez-nous	-
33	3203715		Glass-drawer Black		Appelez-nous	-
34	318116000		Front Frame Drawer		Appelez-nous	-
35	318107000		Drawer,broiler		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
37	3203722		Rail-drawer Rh		Appelez-nous	-
39	318362822		Handle-door,black   (Replaces: 316091103)				$ 104.05
43	318107800		Liner,broiler Door		Appelez-nous	-
44	318088300		Spring-broiler		Appelez-nous	-
45	318024400		Hinge-broiler		Appelez-nous	-
46	318126200		Pan-broiler		Appelez-nous	-
47	318126300		Insert-broiler Pan		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531				$ 10.06
133	318136000		Panel, Broiler Drawer, Bottom		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
45A	318024401		Hinge-broiler		Appelez-nous	-
NI	5304414648		Screw,10-24 X 1/4   (Replaces: 5303308458)				$ 14.18
NI	3202113		Button, Plug		Appelez-nous	-
