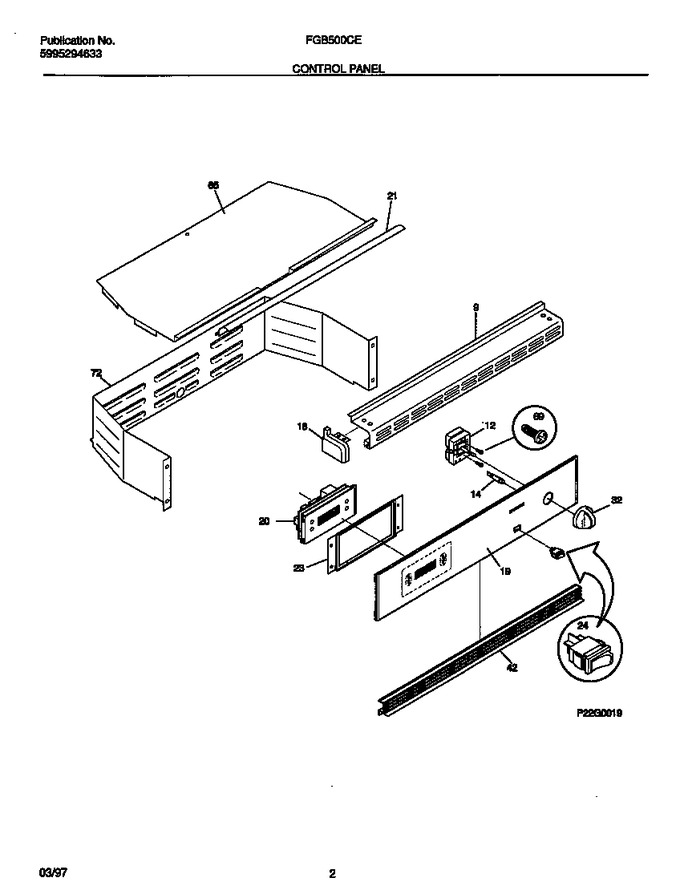

SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318027300		Trim-vent, White		Appelez-nous	-
12	318058910		Thermostat-oven		Appelez-nous	-
14	318044602		Light/lamp, Indicator, Red		Appelez-nous	-
18	5303310391		End Cap, White, Rh (not Illustrated)		Appelez-nous	-
18	5303310389		End Cap, White, Lh		Appelez-nous	-
19	318129502		Panel-control, White		Appelez-nous	-
20	316066801		Clock/timer, Electronic, White		Appelez-nous	-
21	5303271091		Trim-canopy/shield, White		Appelez-nous	-
21	5303131766		Screw, Top Trim, 6-32 X 3/8 (not Illustrated)				$ 10.87
23	318015710		Bracket, Clock		Appelez-nous	-
24	5303304692		Plate, Backup, Light Switch (not Illustrated)		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
32	318017206		Knob-thermostat, White				$ 23.57
42	318028021		Trim-vent		Appelez-nous	-
65	5303308466		Cover-control Housing		Appelez-nous	-
72	5303302397		Housing,control		Appelez-nous	-
*97360	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*97361	5303280380		Seal, Sponge		Appelez-nous	-
*97362	5303300414		Spacer, Cork & Rubber				$ 13.18
*97363	5303320423		Rivet, (2)		Appelez-nous	-
*97364	5303320666		Spacer-bracket Relay		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
