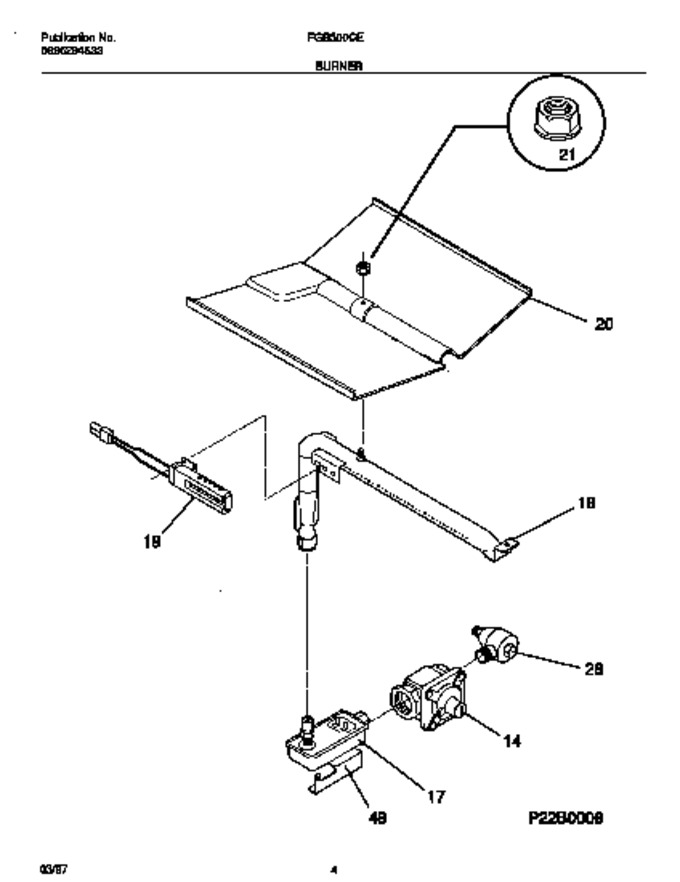

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5303210167 | Regulator,pressure |
|
- | |||||
| 17 | 3203702 | Valve-safety |
|
- | |||||
| 19 | 5303308468 | Ignitor-oven |
|
- | |||||
| 20 | 3203676 | Baffle,oven Burner |
|
- | |||||
| 21 | 154079601 | Nut (Replaces: 3201885) |
|
$ 0.41 | |||||
| 28 | 5303295305 | Valve-shut Off |
|
- | |||||
| 49 | 5303308469 | Bracket,safety Valve |
|
- | |||||
| *97365 | 3015250 | Insulator, Nylon |
|
- | |||||
| *97366 | 3051070 | Screw, Hex Washer Head, 10-24 X 7/16, Special |
|
- | |||||
| *97367 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *97368 | 5303311306 | Screw, 8-18 X 3/8 |
|
- | |||||
| 18A | 5303210787 | Burner-oven |
|
- | |||||
| 18B | 5303311549 | Screw-burner Mtg (not Illustrated) |
|
- |
